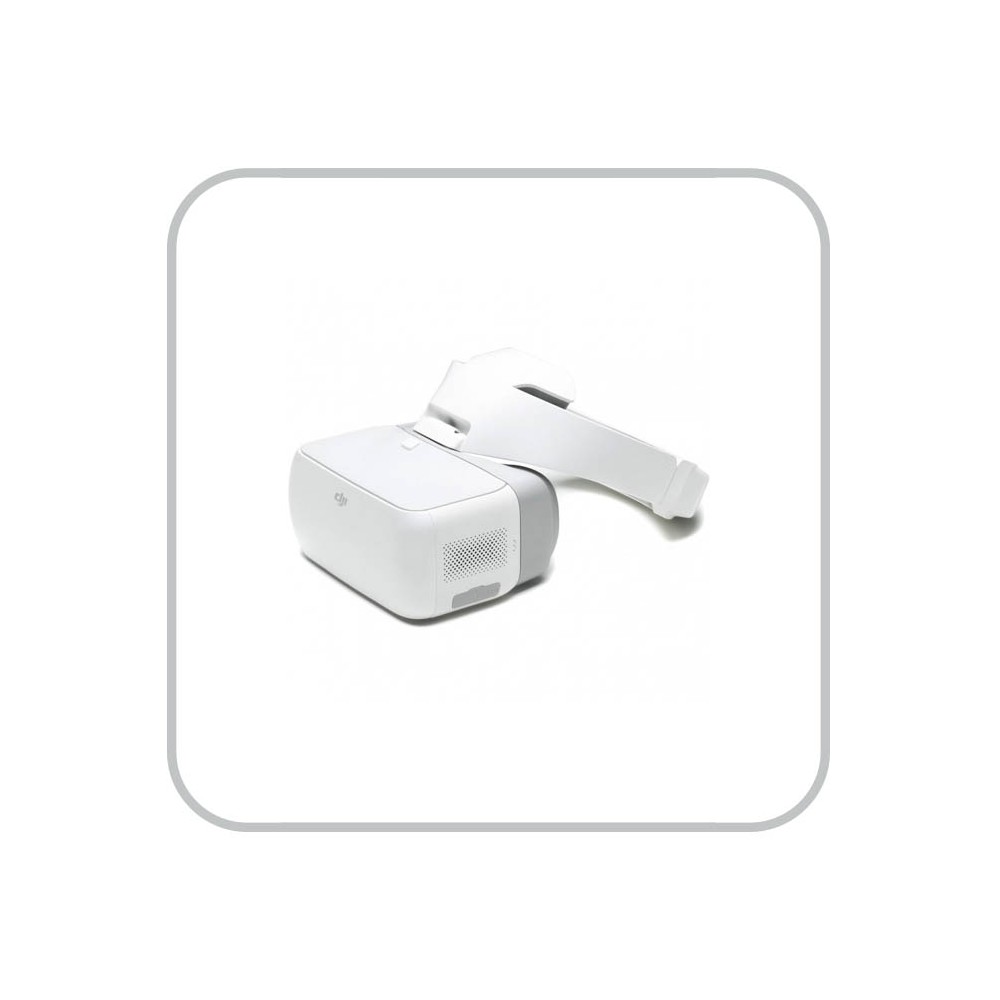

DJI Goggles FPV Headset

Weight

Goggles: 495 g

Headband: 500 g

Dimensions

Goggles: 195×155×110 mm

Headband(Folded): 255×205×92 mm

FOV

85° (single screen)

Screen Size

5 inch×2

Interpupillary Distance Range

58 – 70 mm

Refresh rate

60 Hz

Screen Resolution

3840×1080 (single screen: 1920×1080)

Operating Frequency

2.4 GHz

Max.Transmission Distance

Same as the aircraft connected

Video Downlink Resolution

1080p 30, 720p 60, 720p 30

Video Downlink Latency

(Near field and free of interference)

110 ms (Mavic Pro, 720p60, video format: 720p120)

150 ms (Phantom 4 Pro/Advanced series, 720p60, video format: 720p60/720p120)

167 ms (Phantom 4, 720p30, video format: 720p60)

140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)

190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)

Battery Capacity

9440 mAh

Battery Energy

35.44 Wh

Max Operating Time

6 hrs

Operating Temperature Range

32°F (0°C) - 104°F (40°C)

I/O Interface

Micro USB, 3.5mm audio jack,

HDMI type-D, Micro SD card slot

HDMI Supported

HDMI 1.4b, HDCP 1.4

Sensors

Gyroscope, Accelerometer, Proximity sensor

Charger

Input: 100-240VAC, 50/60 Hz. 0.5A

Output: 5V,3A ; 9V,2A；12V,1.5A

Notes

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
