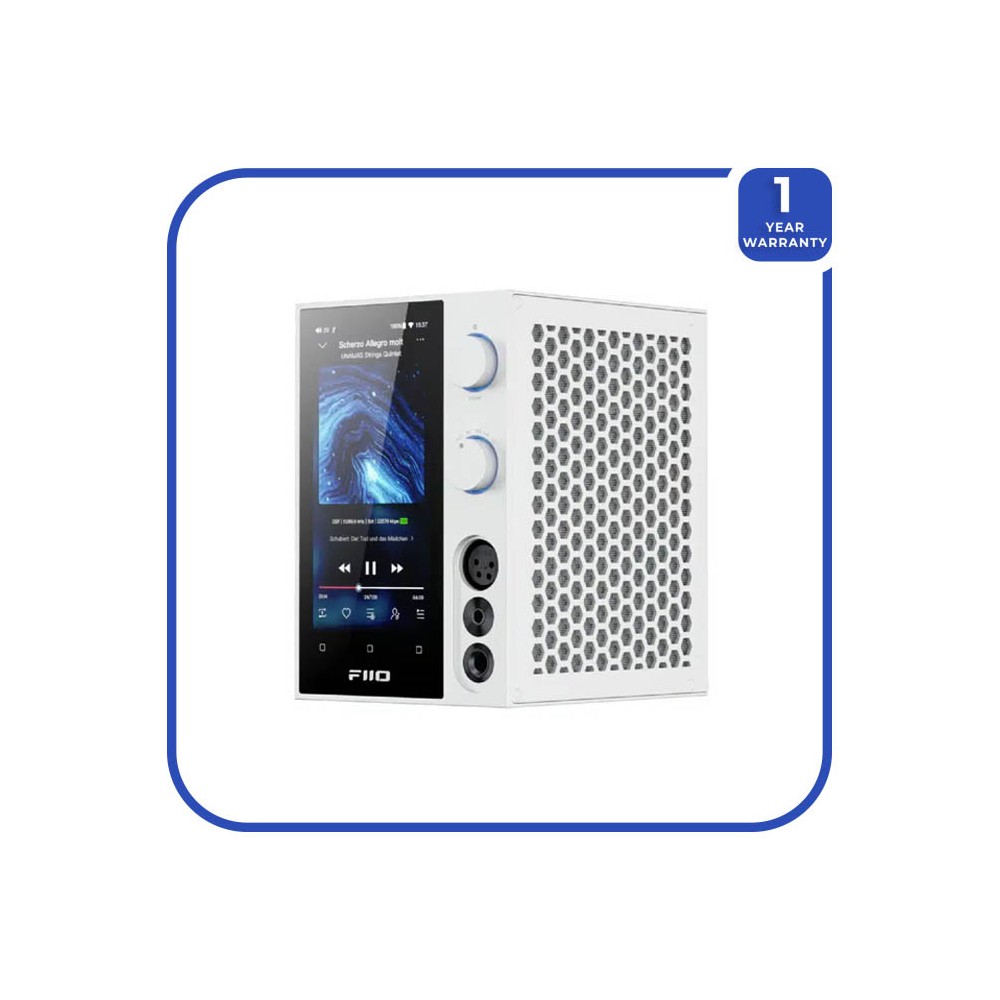

FiiO R7 Audio Player DAC Headphone Amplifier

Inputs

Bluetooth 5.0

WIFI

1* USB-C

1* USB-A (USB Host)

1* Optical Toslink

1* Coaxial

1* Ethernet RJ45

1* Slot SD (up to 2TB)

Outputs

Bluetooth 5.0

WIFI

1* Optical Toslink

1* Coaxial

2* Single-ended stereo RCA

1* Balanced stereo XLR

1* Single-ended Jack 6.35mm headphone output

1* Balanced Jack 4.4mm headphone output

1* Balanced XLR 4 pins headphone output

WIFI: 2.4GHz/5GHZ

DAC chip: ESS ES9068AS

Headphone amplification chip: 2* THX AAA-788+

SoC: Qualcomm Snapdragon 660

RAM: 4Go

Internal storage: 64Go

OS: Android 10

Screen: 4.97" 720*1280px

Supported Bluetooth codecs

Transmission: SBC, AAC, aptX, aptX LL, aptX Adaptive, aptX HD, LDAC, LHDC

Reception: SBC, AAC, LDAC

Bluetooth LED indicator

Blue: SBC

Cyan: AAC

Purple: aptX / aptX LL

Yellow: aptX HD

White: LDAC

Green: aptX Adaptive

Orange: LHDC

Supported sampling rates

DAC USB / Local decoder: PCM up to 32bit 384kHz, Native DSD up to DSD256

USB Audio: PCM up to 32bit 768kHz, Native DSD up to DSD512

Coaxial input: PCM up to 24bit 192kHz

Optical input: PCM up to 24bit 96kHz

Coaxial output: PCM up to 24bit 384kHz, DSD DoP up to DSD128

Optical output: PCM up to 24bit 192kHz

MQA Support: 8x decoding

Sampling rates LED indicator

Blue: lossy

Cyan: low resolution

Yellow: high resolution

Vert: DSD

Magenta: MQA

Headphone output power: 3000mW

Recommended headphone impedance

Single-ended: 16 ~ 150Ω

Balanced: 16 ~ 300Ω

Channel balance: L20~R20 (0.5dB per level)

Gain settings

Ultra high

Super high

High

Medium

Low

EQ

Dynamic 10 bands (±12dB)

8 presets

Custom EQ
