FiiO Q15 Digital Audio Player (DAP)

DAC and headphone amplifier

For the desk and on the go - Dual power mode - Separate Type-C power connector

1600mW high output power - Easy operation of all types of IEMs and headphones

Bluetooth / USB / Coaxial - One device that meets the needs of many usage scenarios

AKM flagship DAC combination AK4191+AK4499EX - Digital-analog separated partitions, for significantly improved audio performance

Qualcomm QCC5125 Bluetooth chip - Independent Bluetooth chip, supports high-resolution Bluetooth codecs such as LDAC

XMOS 16-core XU316 - Supports 768kHz/32bit PCM, DSD512 and MQA full decoding

Full-color IPS display - Comprehensive status display that makes control easier

Global PEQ - 10-band EQ settings are available on all Bluetooth codecs and USB 192k

5-stage audio circuit - 5 amplification stages, 15x digital-analog power supply

Comprehensive Protection - Overheat/Overvoltage/DC protection + comprehensive software and hardware battery protection mechanism

Portable device for the desk - FiiO Q15

The Q15 features a new desktop mode that features a separate Type-C power connector. When connected to the power adapter, the Q15 draws external power, bypassing the battery.

Amazing power of 1600mW - Competing with desktop amplifiers

In desktop mode, the FiiO Q15 with balanced output can output 1600mW in the enhanced over-ear headphone mode, which is more than enough to drive various IEMs and full-size headphones.

USB / Bluetooth / coaxial decoding

The FiiO Q15 combines USB DAC, Bluetooth, coaxial decoding and other modes in one device, making it easier to connect different devices for different usage scenarios.

USB: Connect to computers/phones/tablets/game consoles and other devices, support up to 768kHz/32bit PCM and DSD512

Bluetooth: Connect to phones/tablets/digital audio players and other devices, supports high-resolution Bluetooth codecs including LDAC/aptX Adaptive

Coaxial: Connect to CD/Digital Streamer/Digital Audio Player and other devices, supports up to 192kHz/24bit PCM and DSD64

AKM flagship DAC combination - AK4191EQ+AK4499EX

The FiiO Q15 features AKM's latest DAC combination - the AK4191EQ+AK4499EX. In combination with the newly developed "DWA Routing Technology", the audio performance is significantly improved. The result is a detailed, natural and realistic sound.

Signal-to-noise ratio: ≥123dB (A-weighted)

THD+N: ＜0.0004% (LO/1kHz/10kΩ)

Noise floor: PO＜3μV (A-weighted); LO<1.6μV (A-weighted);

BAL＜4.8μV (A-weighted)

*The above parameters result from actual tests.

Self-developed digital cores - stable and efficient operation

The Q15 is equipped with digital components at the same level as the FiiO Q7 and uses the ARM processor to realize USB/coaxial/Bluetooth decoding in a device that can process digital audio signals with low latency and high efficiency.

XMOS 16-core XU316: Supports full decoding of 768kHz/32bit PCM, DSD512 and MQA.

TI Cortex M4 processor: Ensures stable and efficient operation of various systems

Two audio crystal oscillators, asynchronous/self-adaptive dual-mode management: accurate and stable adaptation to different sound sources and sampling rates

Full-color IPS display - visually appealing controls

The full-color IPS display makes it easy for you to view the current device status, such as current sample rate, volume, gain, and other information. An intuitive volume control helps you control the volume and easily navigate through the settings.

Phone mode switch - One touch

FiiO engineers have implemented a "Phone Mode" switch to make the Q15 more suitable for use with phones. When you enable Phone Mode*, the Q15 will be powered by the built-in battery and will not consume the phone's battery.

*If you need to connect to a computer, turn off Phone Mode.

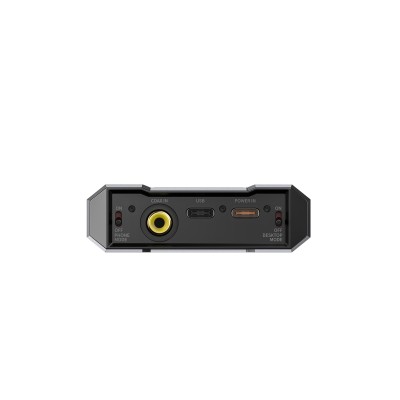

RCA coaxial connection - Complete transmission of the audio signal

Thanks to the carefully designed internals, the FiiO Q15 also has a coaxial input. This allows the Q15 to be connected directly to digital streamers and CD players using normal coaxial cables.

Perfect Size - Perfect Feeling

The Q15 uses AG glass for the back for the first time, which is scratch-resistant, prevents fingerprints and is comfortable to the touch. The 18:9 aspect ratio makes the device comfortable to use both in your hand and in combination with other portable devices. Whether you're just out and about or on a business trip, you're in control of your high-quality sound.

Precisely designed interior Advanced audio circuitry

5-Stage Audio Circuit - 5-Stage Gain: A carefully designed complete audio circuit with DAC-IV LPF gain headphone amplifier stages ensures that the Q15 has a wide dynamic range and offers excellent sound fidelity. The variable gain and variable voltage design maximizes the performance of the audio circuit. There are separate low-voltage low gain and high-voltage high gain modes, respectively suitable for IEMs and full-size headphones.

15-way digital-analog power supply: Inside the Q15 is a 15-way digital-analog power supply with power systems for the digital section, the analog section, the headphone amplifiers, etc. 21 low-noise LDOs ensure precise regulation, and 35 low-resistance tantalum capacitors provide ample energy reserves.

High precision and low noise - An expert in audio reproduction: FiiO engineers specifically selected 60 1‰ precision resistors with low temperature drift and 28 NPO capacitors with a wide temperature range for the Q15, so that the Q15 can reproduce high-quality audio signals with the highest fidelity even under the most demanding conditions.

Global PEQ - Adjustment to personal taste

FiiO Q15 features 7 EQ presets and 3 customizable PEQ* presets. PEQ can be used in both Bluetooth mode* and USB DAC mode*. FiiO's proprietary PEQ algorithm and user interface allow you to select the exact frequencies to adjust along with their gain level and bandwidth - allowing you to fine-tune the sound exactly to your liking.

*Adjustable PEQ and PEQ under coaxial input will be supported by subsequent firmware upgrades.

*The PEQ in Bluetooth mode supports LDAC and other formats with support for 96kHz/24bit PCM.

*USB DAC PEQ supports 192kHz/24bit PCM.

*The USB DAC EQ is controlled by the XMOS chip. If you turn the EQ on and off in this mode, the USB connection will be temporarily interrupted and automatically reconnected. Tap "Play" to restore the output.

Comprehensive protection

FiiO engineers have implemented a variety of hardware and software-controlled protection mechanisms to let you enjoy great sound without worry. Maximum volume limit to prevent hearing damage; Long-life high-temperature resistant battery + dynamic temperature-dependent charge and discharge control + charging protection + battery insulation, all of which together extend the battery life; Overheat, overvoltage and DC protection mechanism enables the Q15 to provide stable output power by ensuring the audio circuit works properly and ensuring the safety of the connected headphones.
