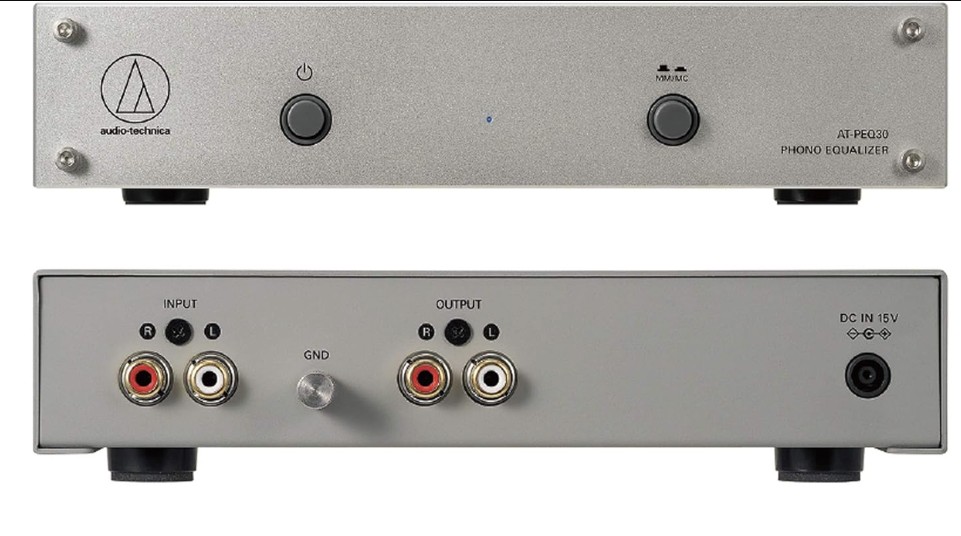

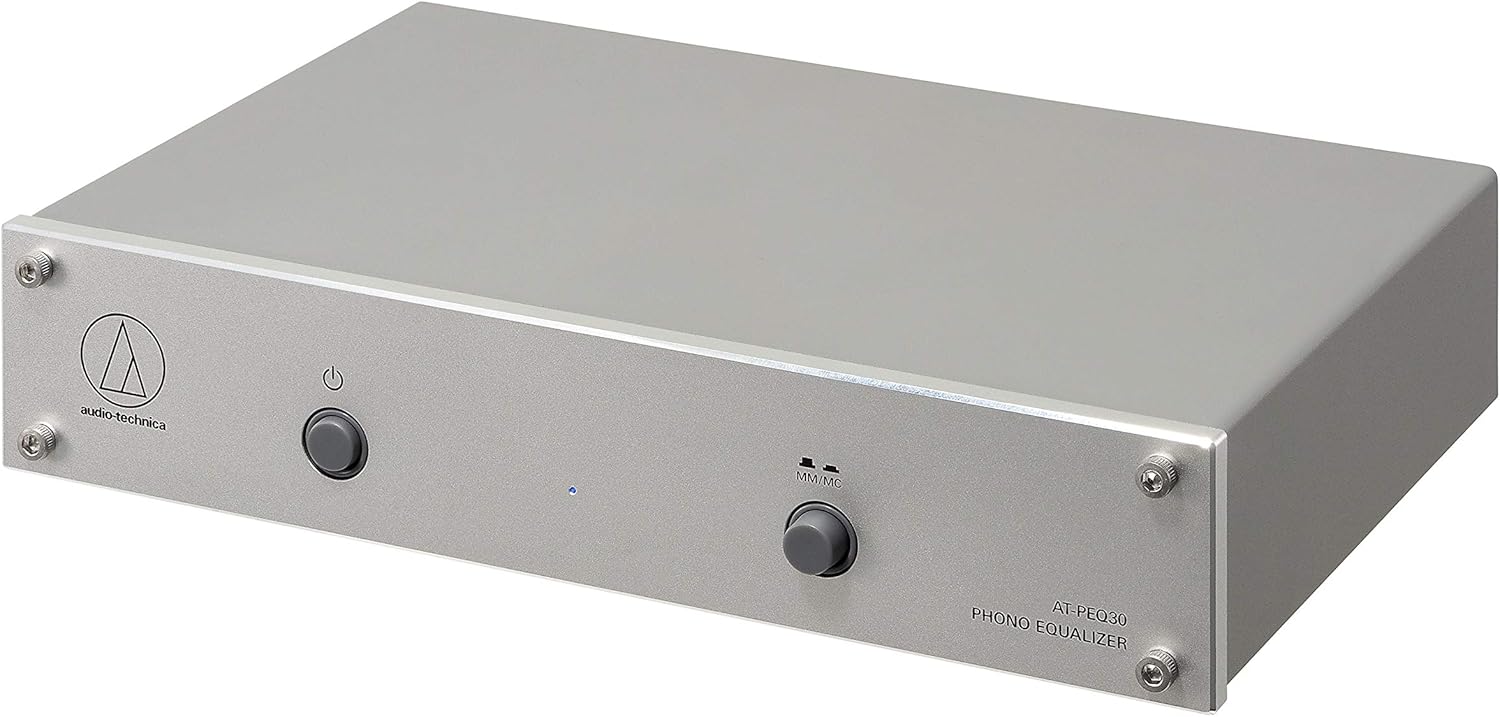

Audio-Technica AT-PEQ30 Phono Equalizer

Description

Input Impedance: MM type: 47 kiloohms / MC type: 120 ohms

Input Sensitivity: MM type: 4.5 mV / MC type: 0.28 mV

Rated Output: MM type: 250 mV / MC type: 250 mV

Gain: MM type: 35 dB / MC type: 59 dB

Signal-to-Noise Ratio: MM type: 100 dB / MC type: 74 dB

RIAA Deviation: (20 to 20,000 Hz) MM type: ±0.5 dB/ (20 to 20,000 Hz) MC type: ±0.5 dB

Power Supply: DC 15 V, 1.2 A

Power Consumption: 2.5 W

Dimension: 47 mm (1.85″) H x 197.5 mm (7.78″) W x 125.5 mm (4.94″) D

(excluding protrusions)

Weight: About 890 g

Accessories Included: AC adapter
