Description

Element: Fixed-charge back plate permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 40 – 20,000 Hz

Open Circuit Sensitivity: -48 dB (3.9 mV) re 1V at 1 Pa

Maximum Input Sound Level: 136 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range: 113 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 71 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 2 mA typical

Weight: 233g

Dimensions: 179.1 mm (7.05″) long, 50.8 mm (2.00″) maximum body diameter

Output Connector: Integral 3-pin XLRM-type

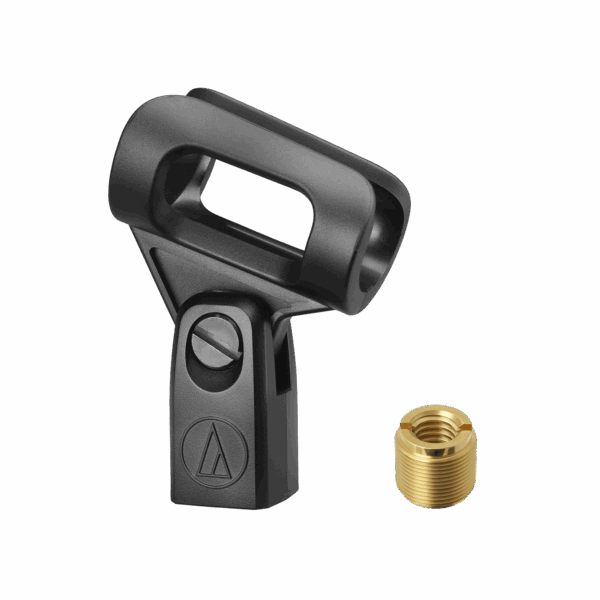

Accessories Included: AT8470 Quiet-Flex™ stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
