Description

Element: Externally-polarized (DC bias) condenser

Polar Pattern: Cardioid, Omnidirectional, Figure-of-Eight, Multi-Pattern

Frequency Response: 20 – 20,000 Hz

Low Frequency Roll Off: 80 Hz, 12 dB/octave

Open Circuit Sensitivity: -42 dB (7.9 mV) re 1V at 1 Pa

Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)

Dynamic Range: 136 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 77 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 11-52V DC, 4.7 mA typical

Weight: 412g

Dimensions: 170.0 mm (6.69″) long, 52.0 mm (2.05″) maximum body diameter

Output Connector: Integral 3-pin XLRM-type

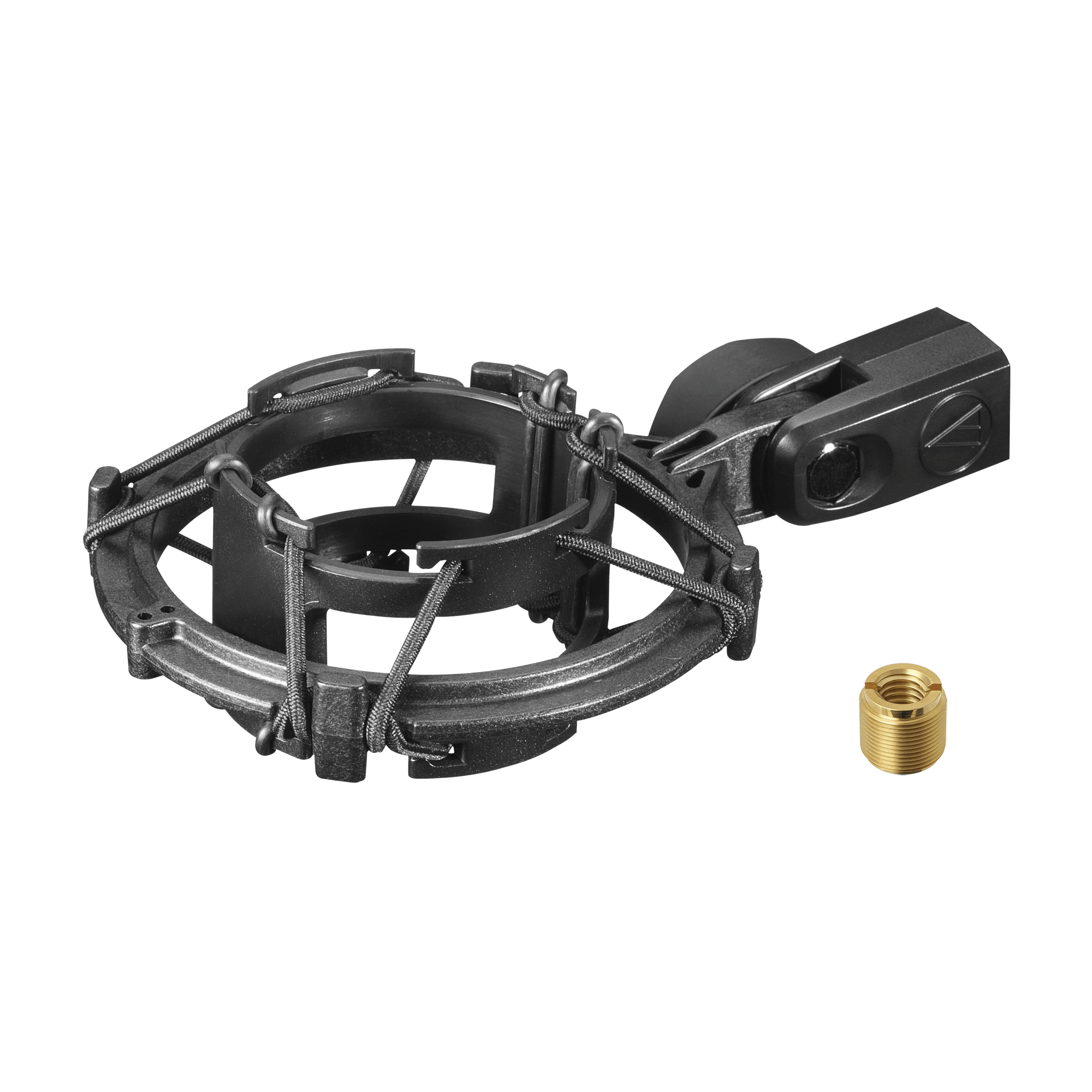

Accessories Included: AT8458 shock mount for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
