Description

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 30 – 20,000 Hz

Low Frequency Roll Off: 80 Hz, 12 dB/octave

Open Circuit Sensitivity: -32 dB (25.1 mV) re 1V at 1 Pa

Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)

Dynamic Range: 128 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 77 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 3.2 mA typical

Weight: 380g

Dimensions: 6.69″ (170.0 mm) long, 2.10″ (53.4 mm) maximum body diameter

Output Connector: Integral 3-pin XLRM-type

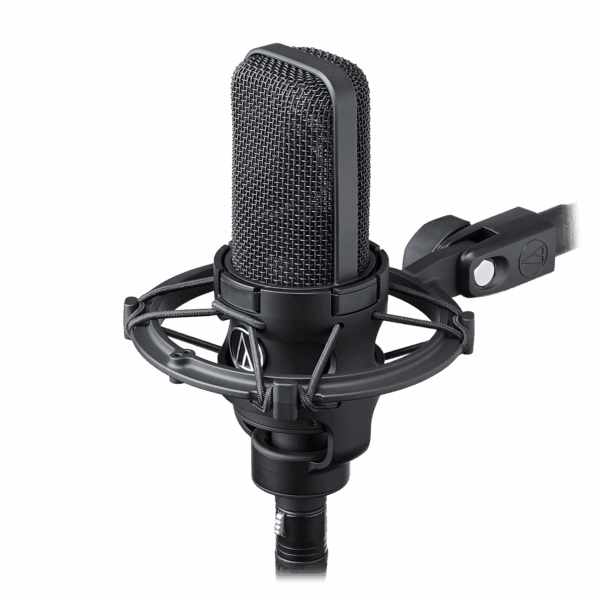

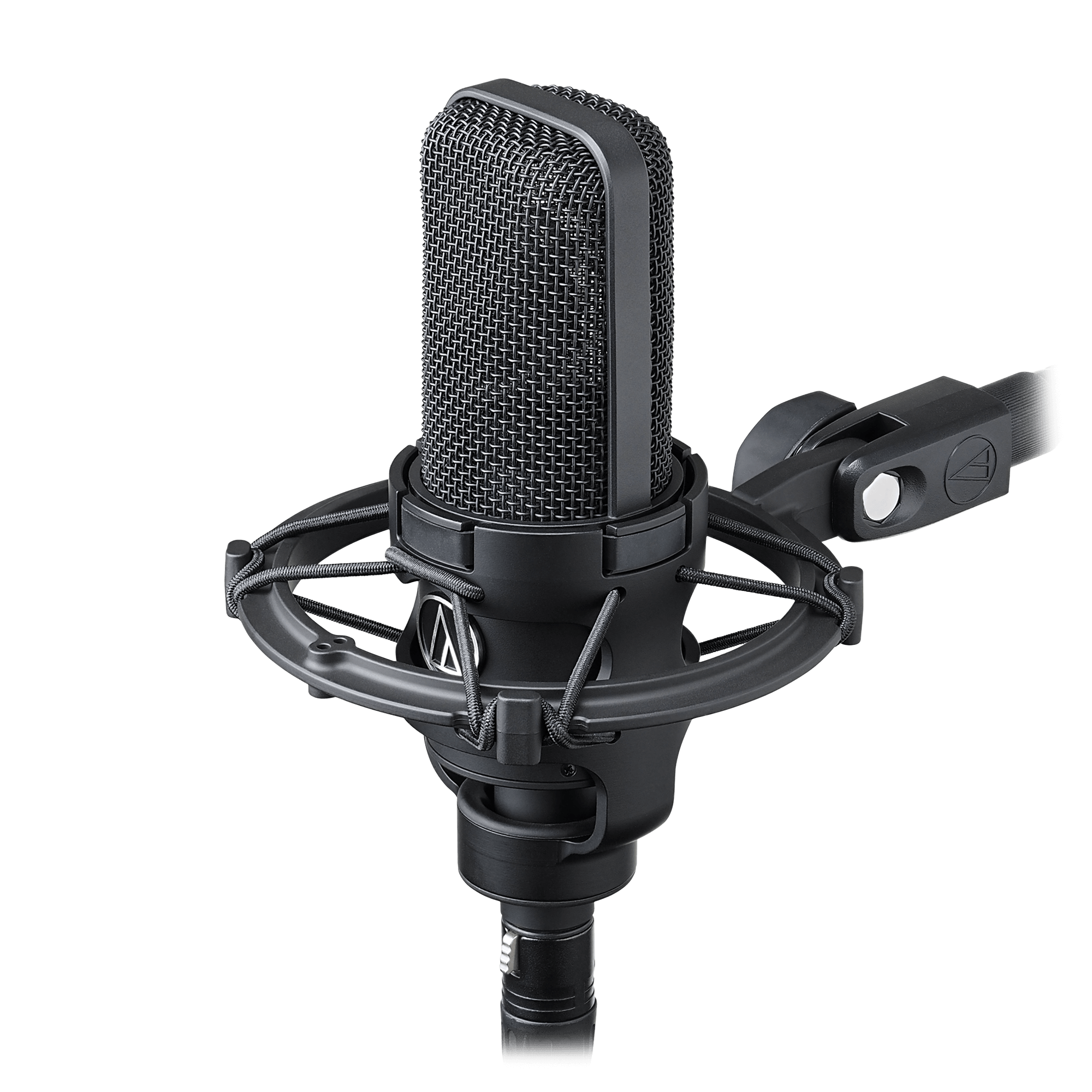

Accessories Included: AT8449a shock mount for 5/8″-27 threaded stands; protective carrying case
