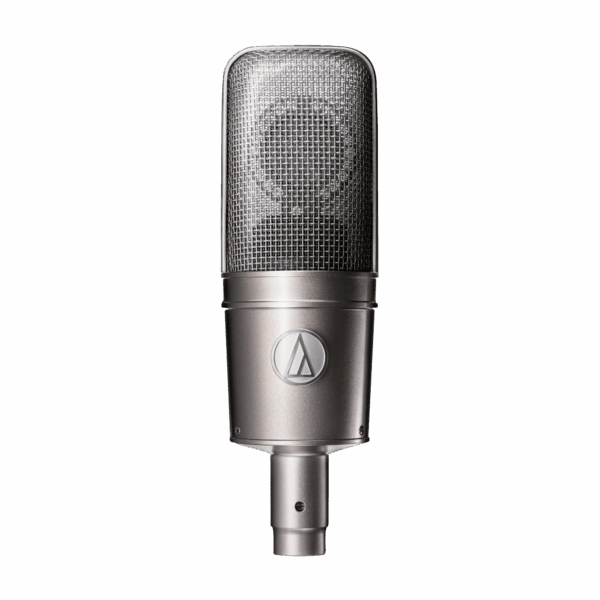

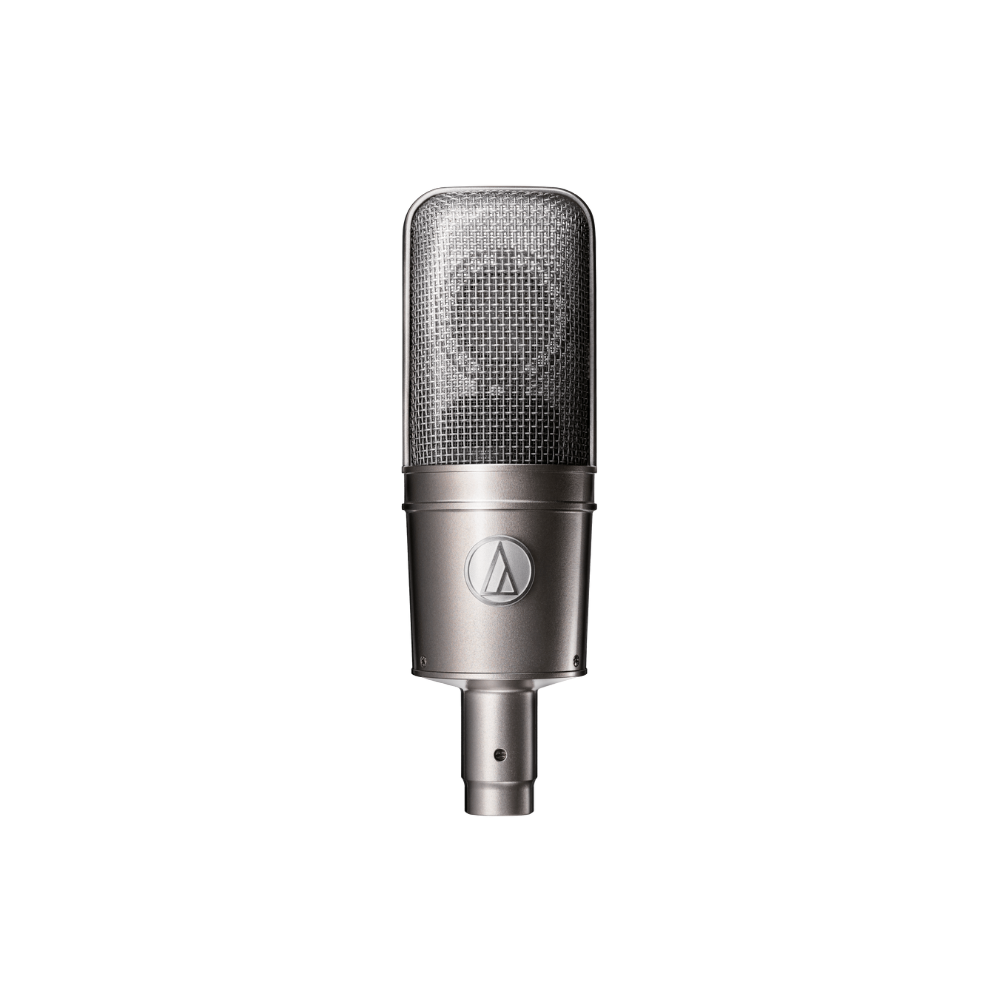

Audio-Technica AT4047/SV Condenser Microphone

Description

Element: Externally-polarized (DC bias) condenser

Polar Pattern: Cardioid

Frequency Response: 20 – 18,000 Hz

Low Frequency Roll Off: 80 Hz, 12 dB/octave

Open Circuit Sensitivity: -35 dB (17.7 mV) dB re 1V at 1 Pa

Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)

Dynamic Range: 140 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 85 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 3.0 mA typical

Weight: 410g

Dimensions: 6.69″ (170.0 mm) long, 2.10″ (53.4 mm) maximum body diameter

Output Connector: Integral 3-pin XLRM-type

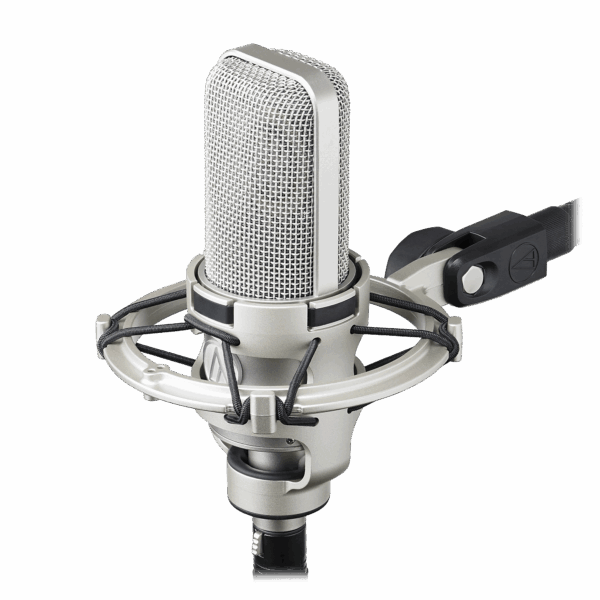

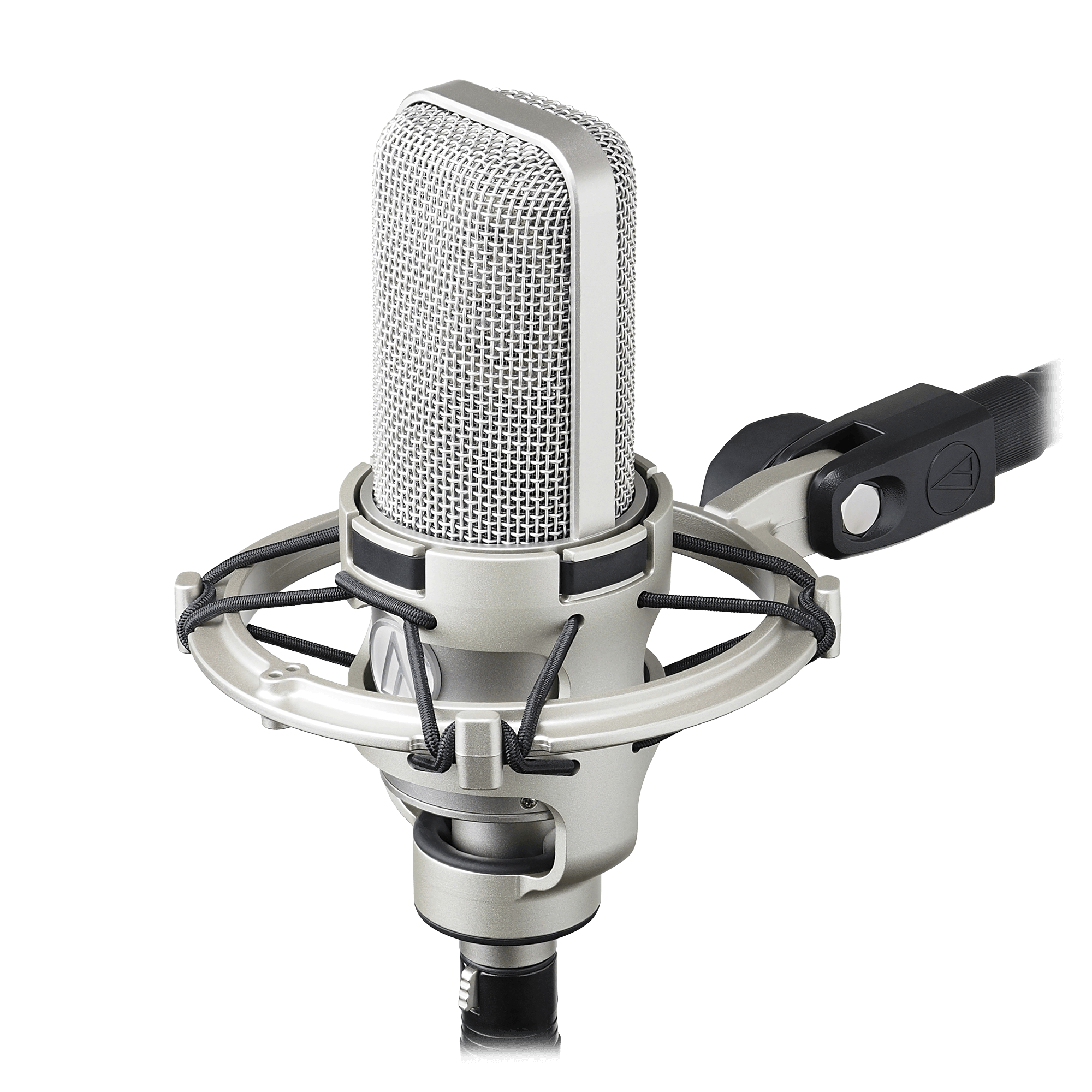

Accessories Included: AT8449aSV shock mount for 5/8″-27 threaded stands; protective carrying case
