Description

Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices

The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap

Users can choose up to 4 channels in a group

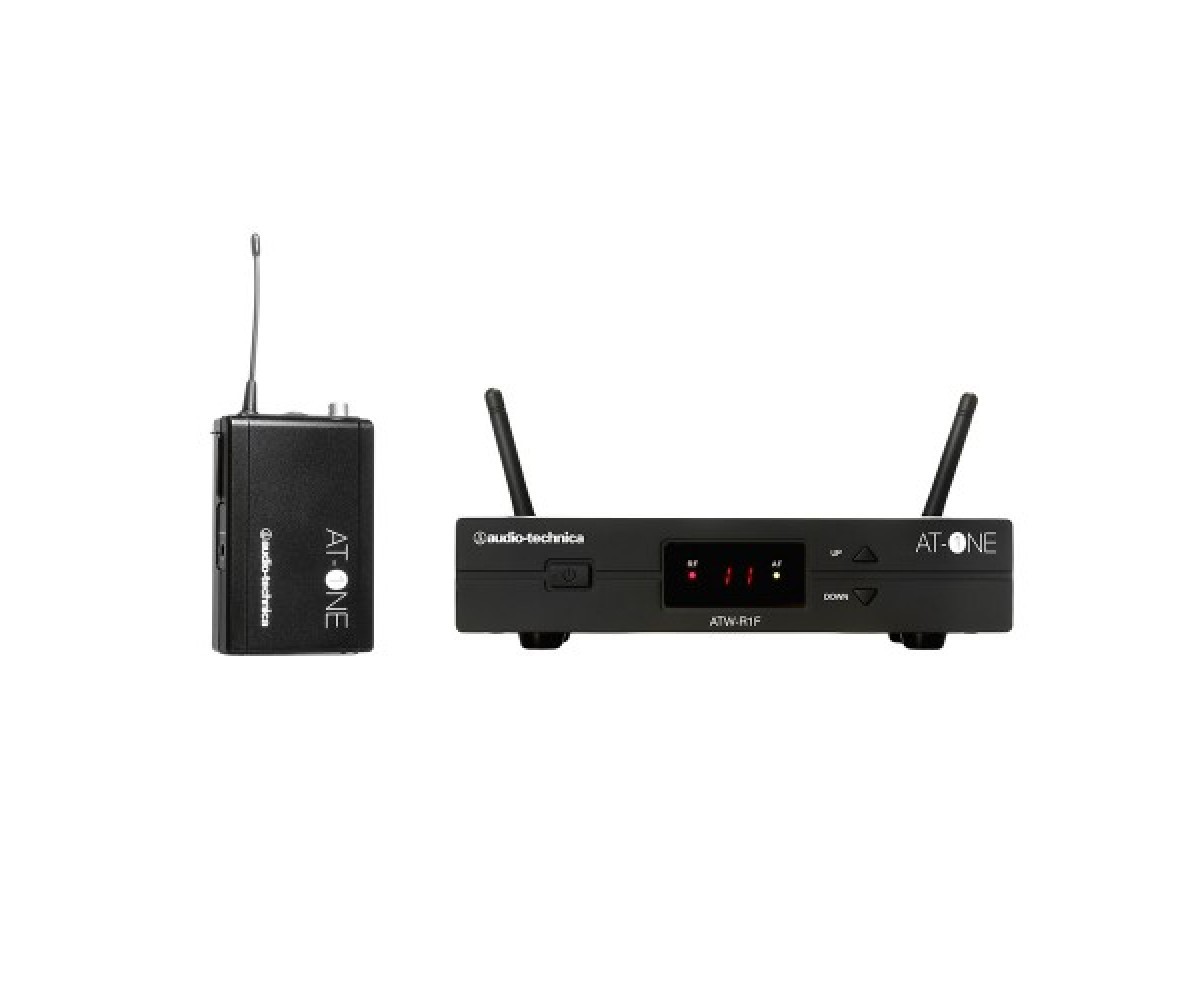

The ATW-11 system is equipped with a discreet and robust pocket transmitter

RF transmission power 10mW

The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones

Up to 10 hours’ battery life with 2 x 1.5V AA batteries

RF Indicator light

Robust construction from high quality components

Delivered in a transport case with a rack mount kit and detachable antennas

Overall System

Operating Frequencies: DE3 Band: 482 – 512 MHz

Number Of Channels: 2 x 4 frequencies

Frequency Stability: +/- 0.005%, Phase lock loop frequency control

Modulation Mode: FM

Frequency Response: 60 Hz – 16 kHz

Operating Range: 60m, typical

Receiver

Receiving System: Antenna switching diversity

Image Rejection: 55dB minimum

Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)

Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)

Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz

Audio Output Unbalanced: -2dBV

Audio Output Balanced: 4dBV

Output Connectors(Microphone): Balanced: XLRM-type

Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack

Maximum Output Level: Mic / Line (0 / -20dB)

Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each

Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)

Weight: 418 g without accessories

Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case

Belt Pack

RF Power Output: 10 mW

Spurious Emissions: Following national regulations

Input Connections: Pin 1: GND / Pin 2: INST / Pin 3: Mic / Pin 4: DC Bias +10V

Battery Type: Two 1.5V AA alkaline (not included)

Battery Life: 10 hours – depending on battery type and use pattern
