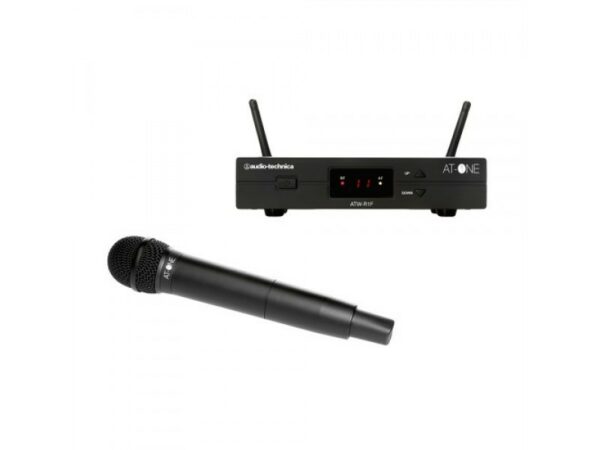

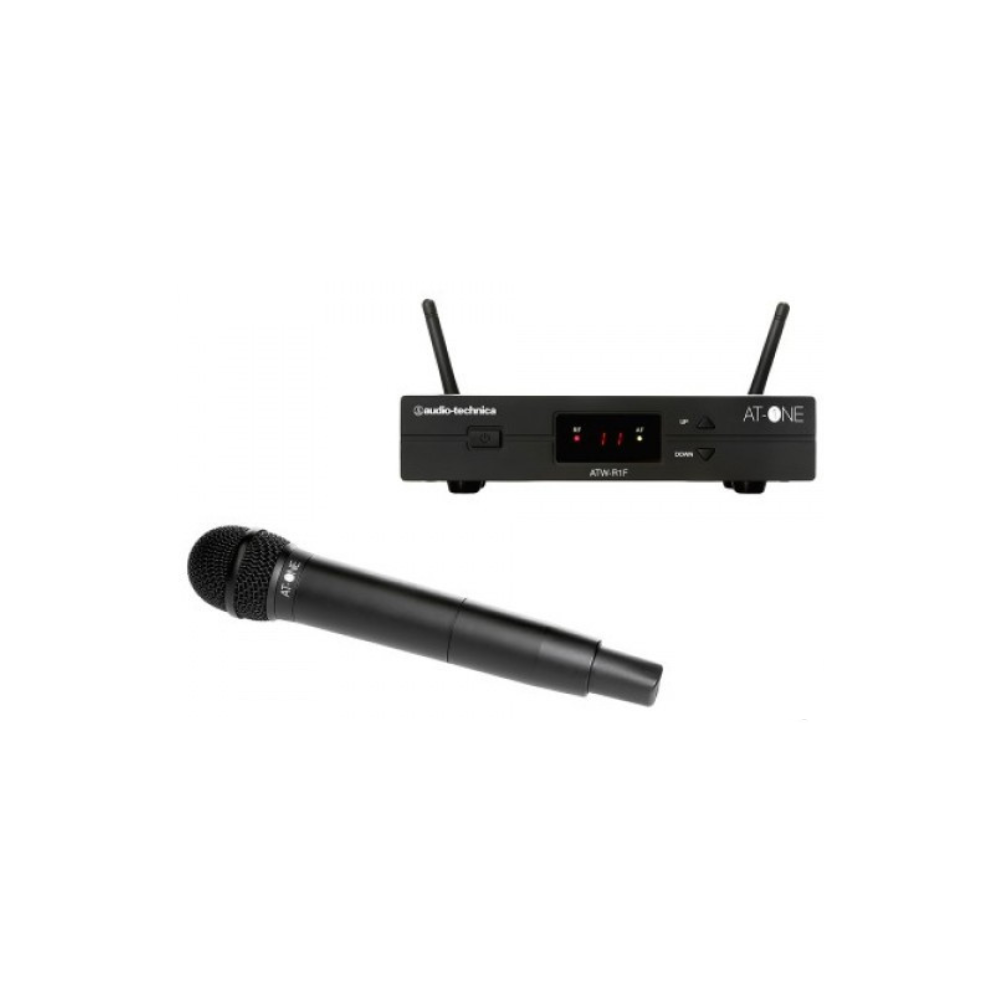

Audio-Technica ATW-13DE3 AT-One Handheld Transmitter System

Description

Operating Frequencies: DE3 Band: 482 – 512 MHz

Number Of Channels: 2 x 4 frequencies

Frequency Stability: +/- 0.005%, Phase lock loop frequency control

Modulation Mode: FM

Frequency Response: 60 Hz – 16 kHz

Operating Range: 60m, typical

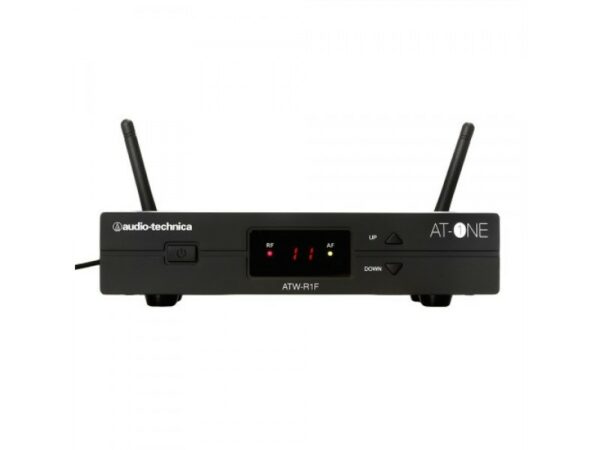

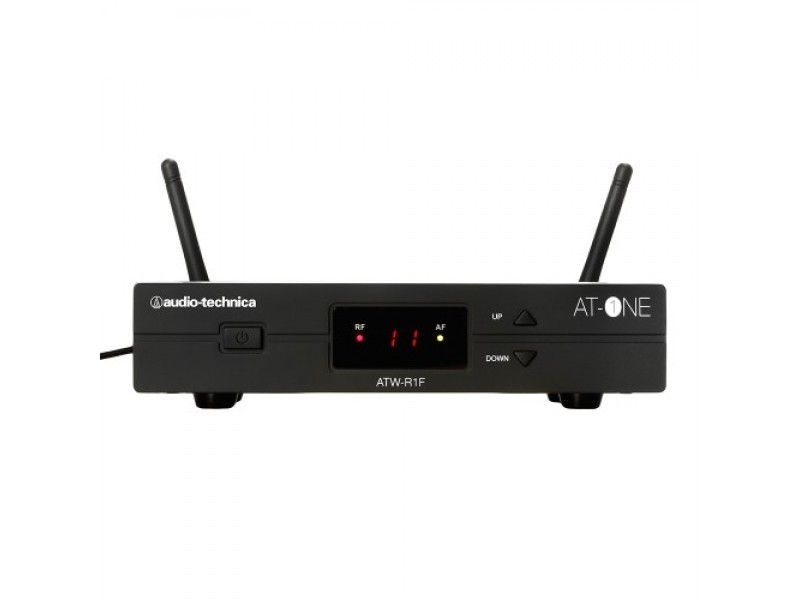

Receiver

Receiving System: Antenna switching diversity

Image Rejection: 55dB minimum

Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)

Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)

Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz

Audio Output Unbalanced: -2dBV

Audio Output Balanced: 4dBV

Output Connectors (Microphone): Balanced: XLRM-type

Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack

Maximum Output Level: Mic / Line (0 / -20dB)

Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each

Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)

Weight: 418 g without accessories

Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case

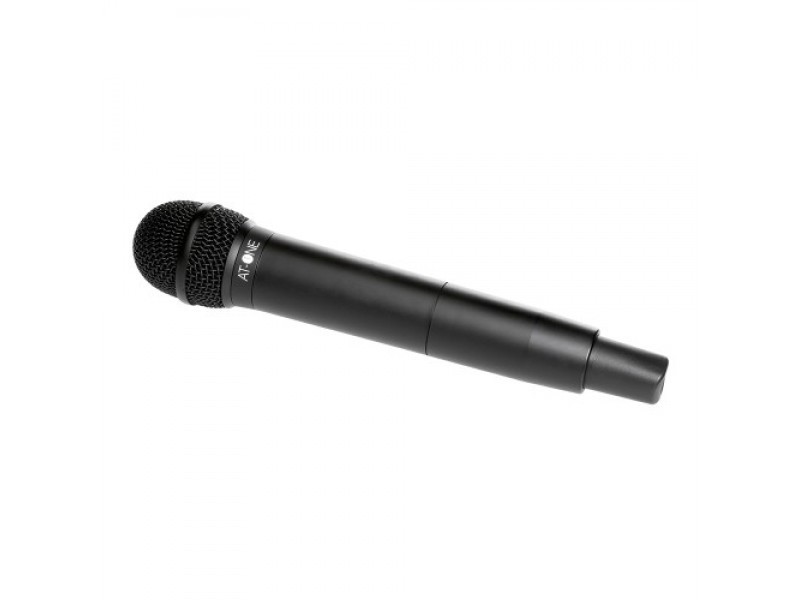

Handheld Transmitter

RF Power Output: 10 mW

Spurious Emissions: Following national regulatios

Microphone Element: Condenser Cardioid

Battery Type: Two 1.5V AA alkaline

Battery Life: 10 hours – depending on battery type and use pattern

Dimensions: 268 mm long – 52 mm (diameter)

Accessories Included: Stand clamp
