Description

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 50-15,000 Hz

Low Frequency Roll Off: 80 Hz, 18 dB/octave

Open Circuit Sensitivity: -45 dB (5.6 mV) re 1V at 1 Pa

Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range: 115 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 64 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 11-52V DC, 2 mA typical

Switches: Flat, roll-off

Weight (Microphone): 0.3 oz (8 g)

Weight (Power Module): 2.9 oz (81 g)

Cable: 6.0′ (1.8 m) long (permanently attached to microphone), 0.10″ (2.6 mm) diameter, 2-conductor, shielded cable with TA3F-type connector

Dimensions (Power Module): 3.66″ (92.9 mm) long, / 0.74″ (18.9 mm) diameter

Dimensions (Microphone): 0.98″ (25.0 mm) long, / 0.40″ (10.2 mm) diameter

Output Connector (Power Module): Integral 3-pin XLRM-type

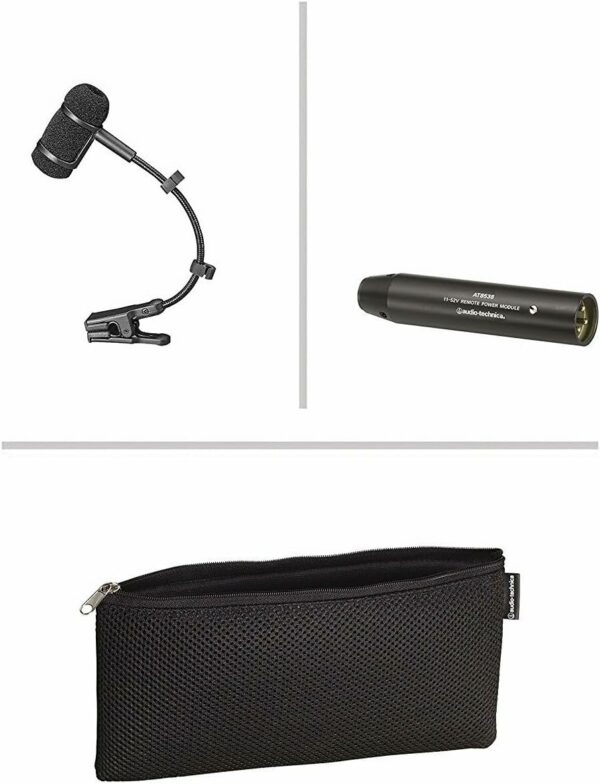

Accessories Included: AT8418 UniMount® microphone instrument mount; AT8538 power module; soft protective pouch

Audio-Technica Case Style: M12
