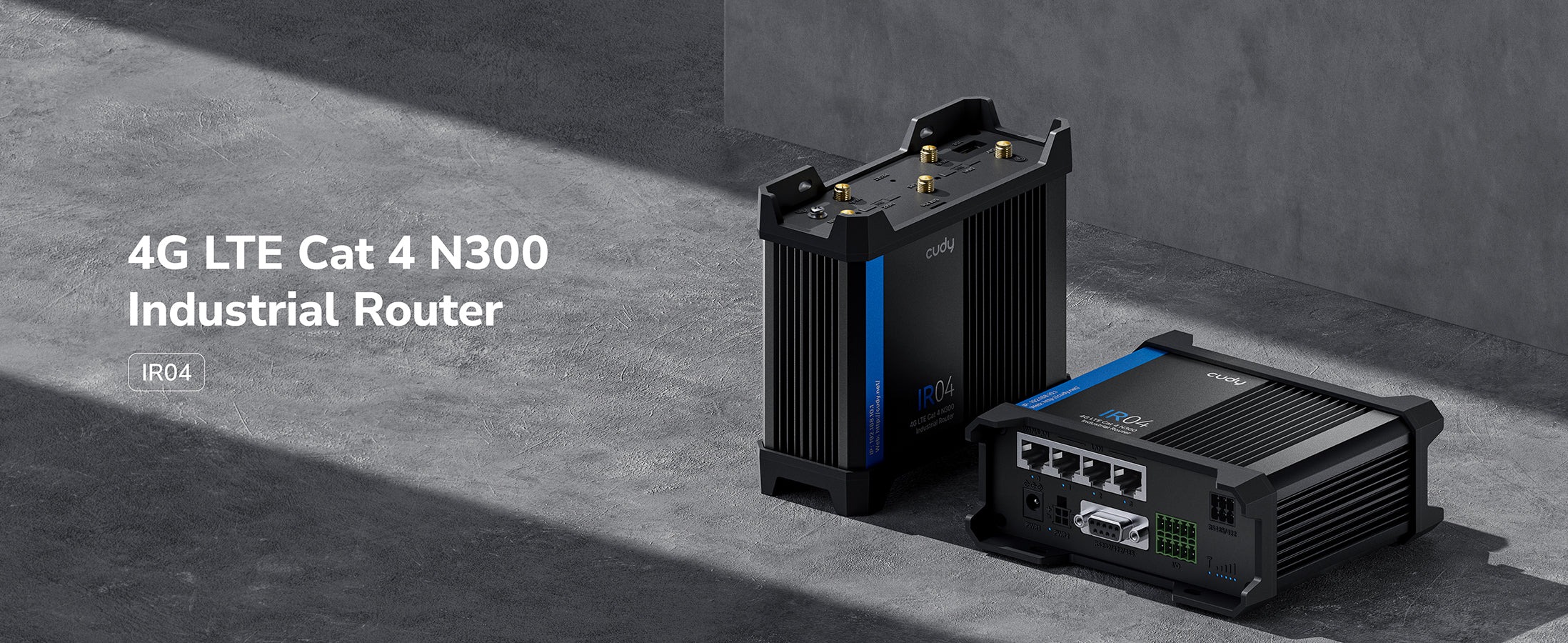

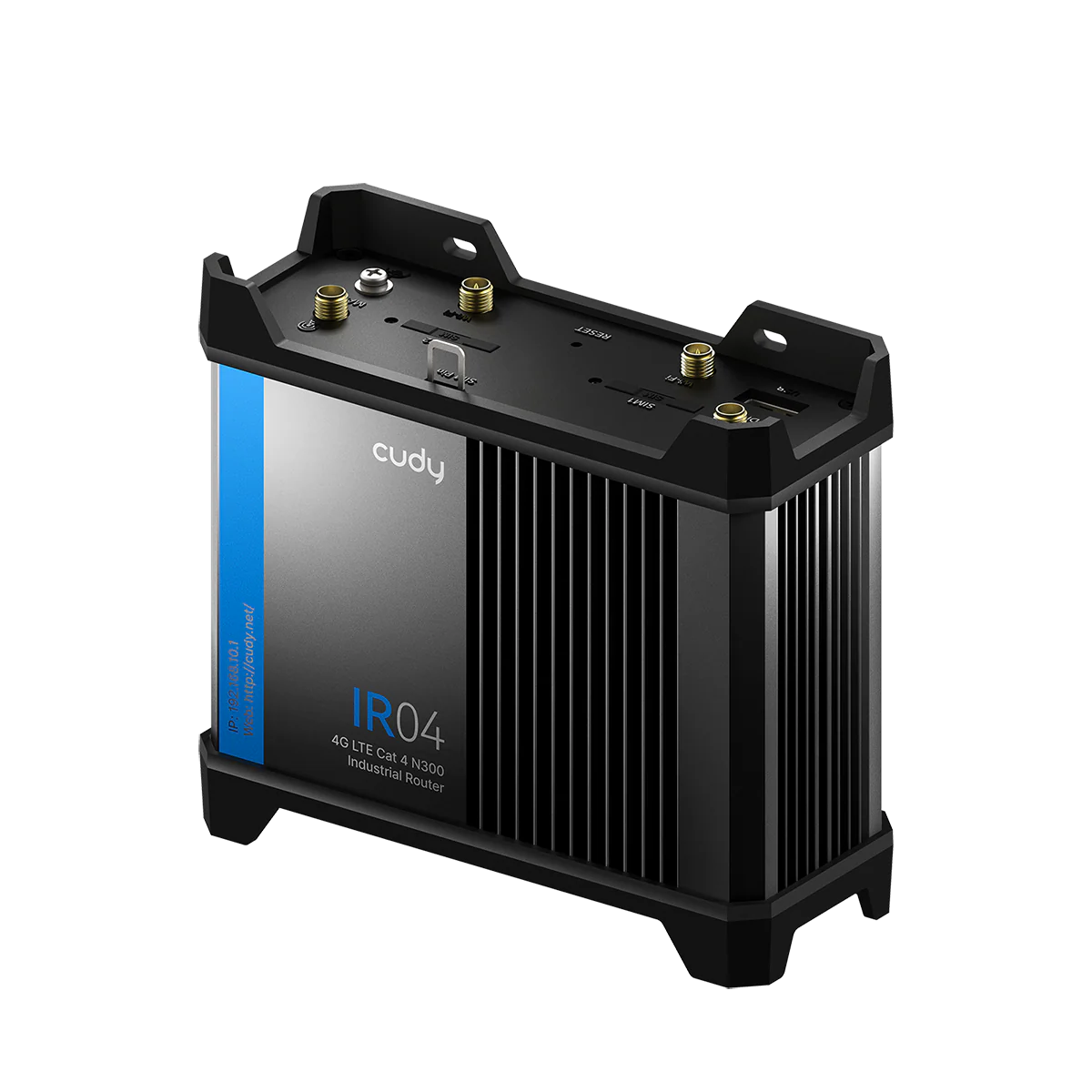

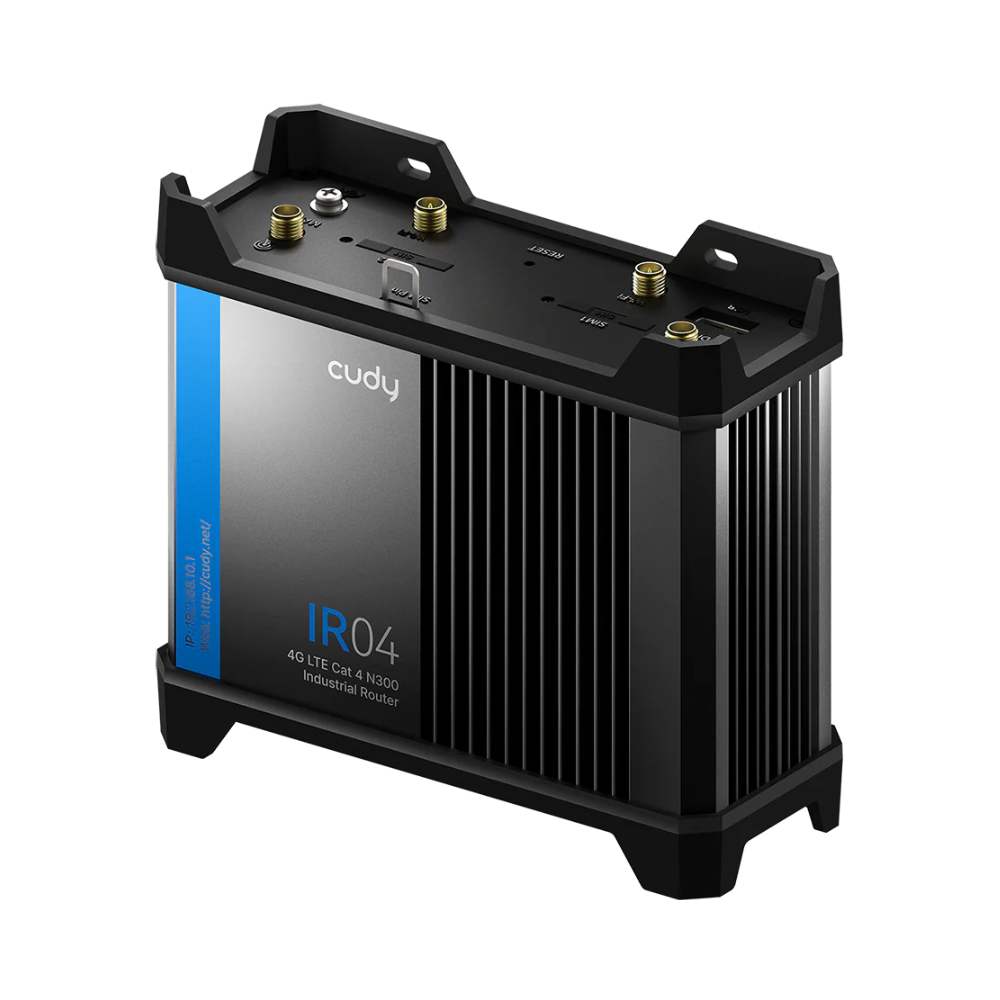

The Cudy Industrial 4G LTE Router (IR04) — model IR04 1.0 — is a rugged SIM‑ready router designed for harsh environments like vehicles, industrial sites, maritime, or remote installations. With dual‑SIM 4G Cat. 4 (up to 150 Mbps downlink) and 2.4 GHz Wi‑Fi (up to 300 Mbps), it provides flexible internet connectivity where fixed broadband is unavailable. The router includes Ethernet, serial ports (RS232/422/485), USB, digital/analog I/O, ignition sensing, and optional PoE/4‑pin DC power, making it ideal for IoT/automation, M2M communication, remote monitoring, or mobile network setups.
| Cellular / 4G | 4G Cat. 4, dual‑SIM (2× Mini‑SIM), up to 150 Mbps DL; 2× detachable LTE antennas (SMA) |
| Wi‑Fi | 2.4 GHz (802.11n / Wi‑Fi 4), up to 300 Mbps, 2×2 MIMO, 2× detachable antennas (RP‑SMA) |

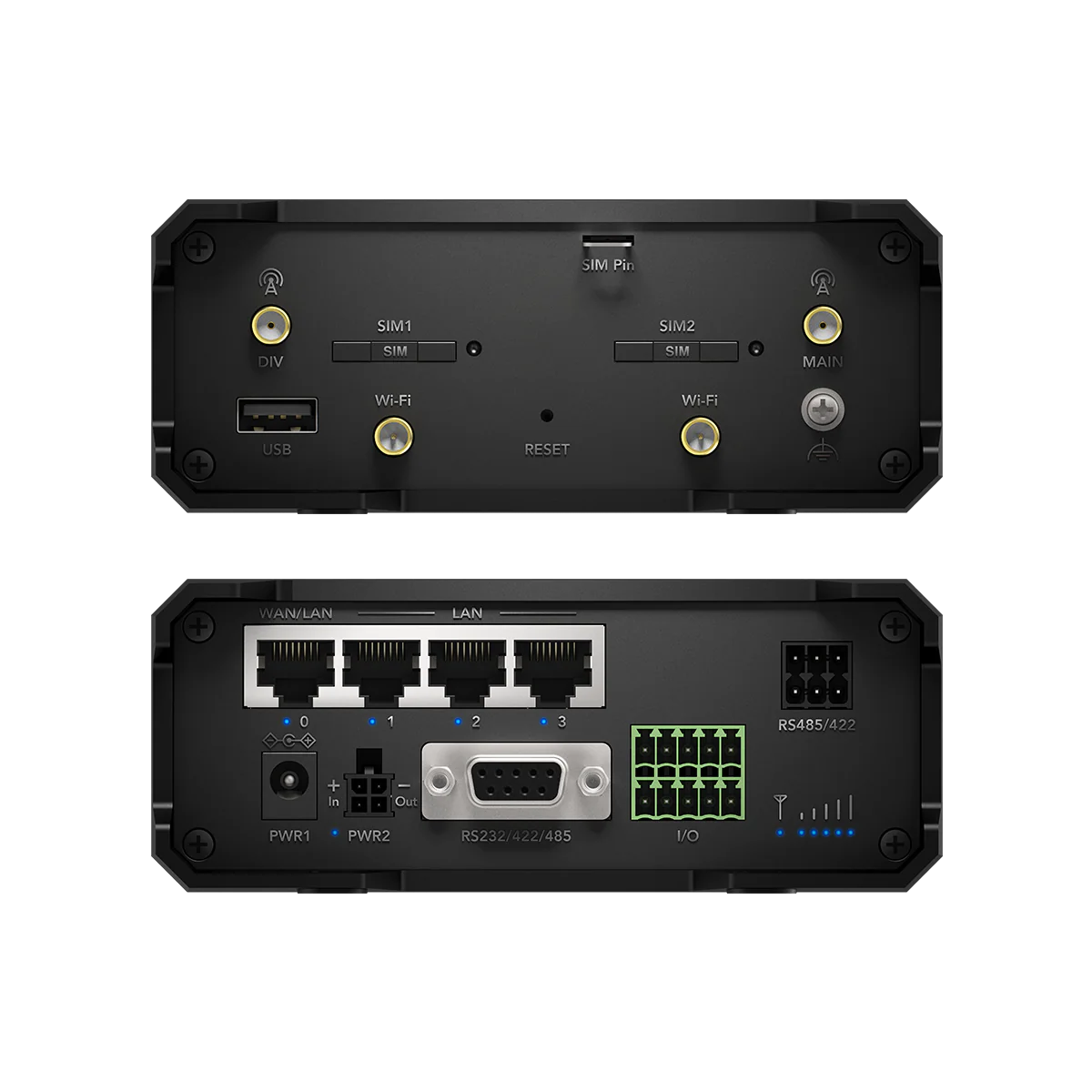

| Ethernet & Ports | 4× RJ45 10/100 Mbps (1 configurable WAN/LAN), 1× USB 2.0, serial ports (RS232/422/485), digital & analog I/O, ignition sensing |
| Hardware | 580 MHz single‑core CPU (MIPS24KEC), 128 MB DDR2 RAM, 16 MB NOR flash |
| Industrial & Environmental | Aluminum alloy chassis, DIN‑rail or wall mount; IP30; EMC Level 4; operating –40 °C to 75 °C; shock, vibration and surge resistant |
| Network & Software Features | WAN / 4G / WISP, auto‑failover, DHCP / static / PPPoE / 3G/4G WAN, IPv4/IPv6, QoS, firewall, port forwarding, UPnP, DMZ, VPN (WireGuard, OpenVPN, PPTP/L2TP), serial‑to‑TCP/UDP/Modbus gateway, remote management, device scheduling and monitoring |
| Warranty Terms: | 1‑Year Warranty Provided by 101 Multimedia |
| Brand | |
|---|---|
| Product Categories | Routers |
