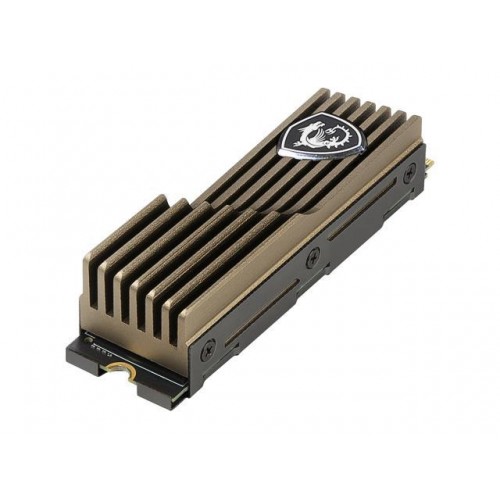

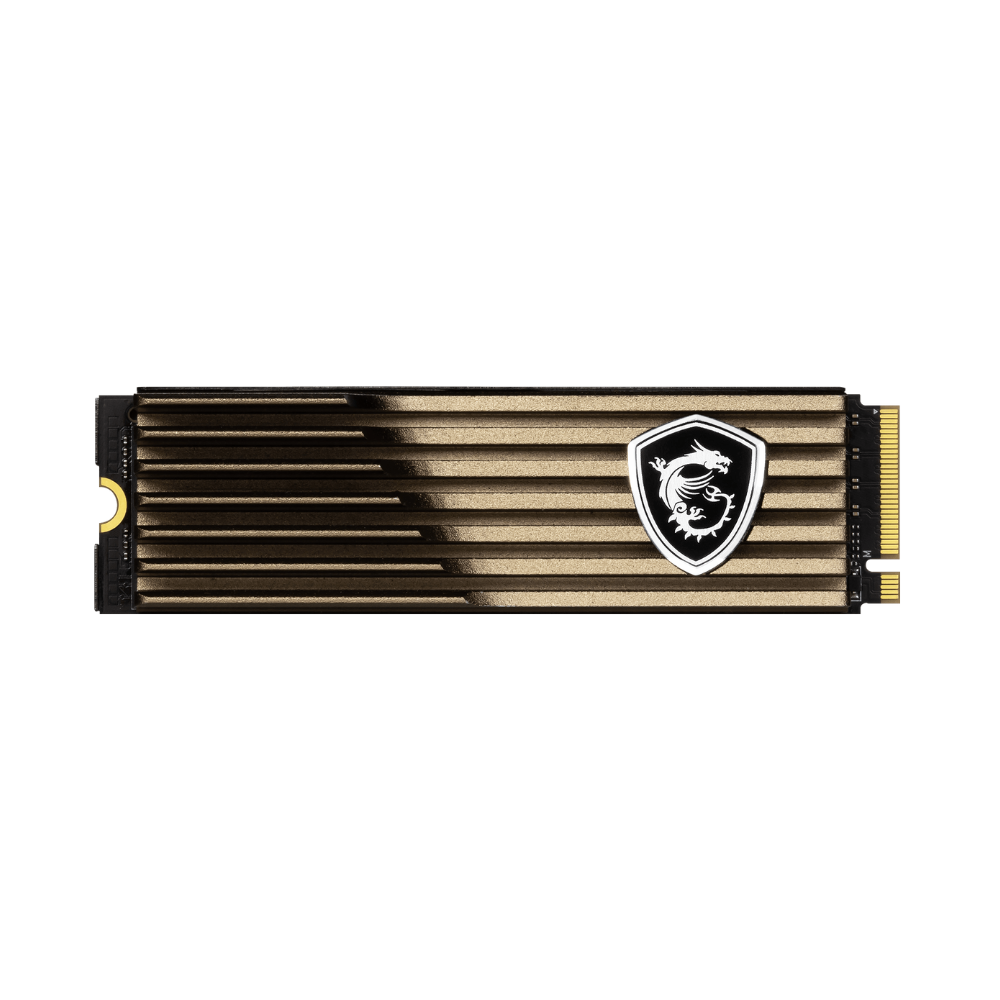

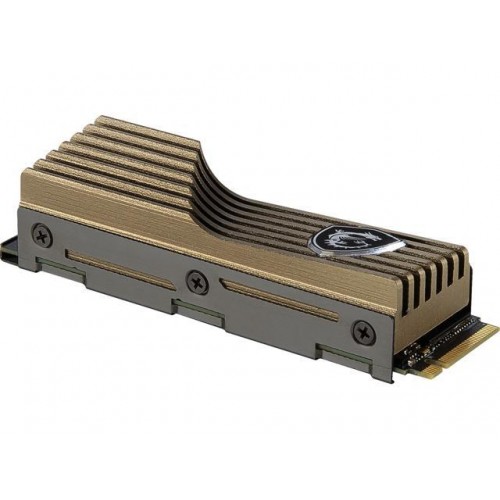

The MSI Spatium M480 NVMe M.2 SSD (2 TB) with Heatsink is a premium PCIe Gen 4.0 ×4 storage drive tailored for gamers, creators, and high-end users. It offers blistering sequential read speeds up to 7,000 MB/s and write speeds up to 6,800 MB/s—all enabled by the Phison E18 controller and NVMe 1.4. The included bronze-colored aluminum “stacked fin” heatsink ensures excellent thermal dissipation to sustain peak performance. With robust endurance and MSI’s versatile software tools, it’s a bold upgrade for modern systems.
Capacity | 2 TB |
Interface | PCIe Gen 4.0 ×4, NVMe 1.4 |
Form Factor | M.2 2280 with integrated aluminum heatsink |
Controller | Phison PS5018-E18 |
NAND Flash | 96L 3D TLC NAND |
Sequential Read | Up to 7,000 MB/s |
Sequential Write | Up to 6,800 MB/s |
Random Read IOPS | Up to ~650,000 IOPS |
Random Write IOPS | Up to ~700,000 IOPS |
Endurance (TBW) | Up to 1,400 TBW |
MTBF | ~1.6 million hours |
Dimensions (no HS) | 80 × 22 × 2.15 mm |
Approx. Height with Heatsink | ~20 mm (heatsink stacked-fin design) |
Warranty Terms: | 1-Year Warranty Provided by 101 Multimedia |
Storage Capacity | 2TB |
---|---|
Form Factor | NVMe M.2 Drive |
