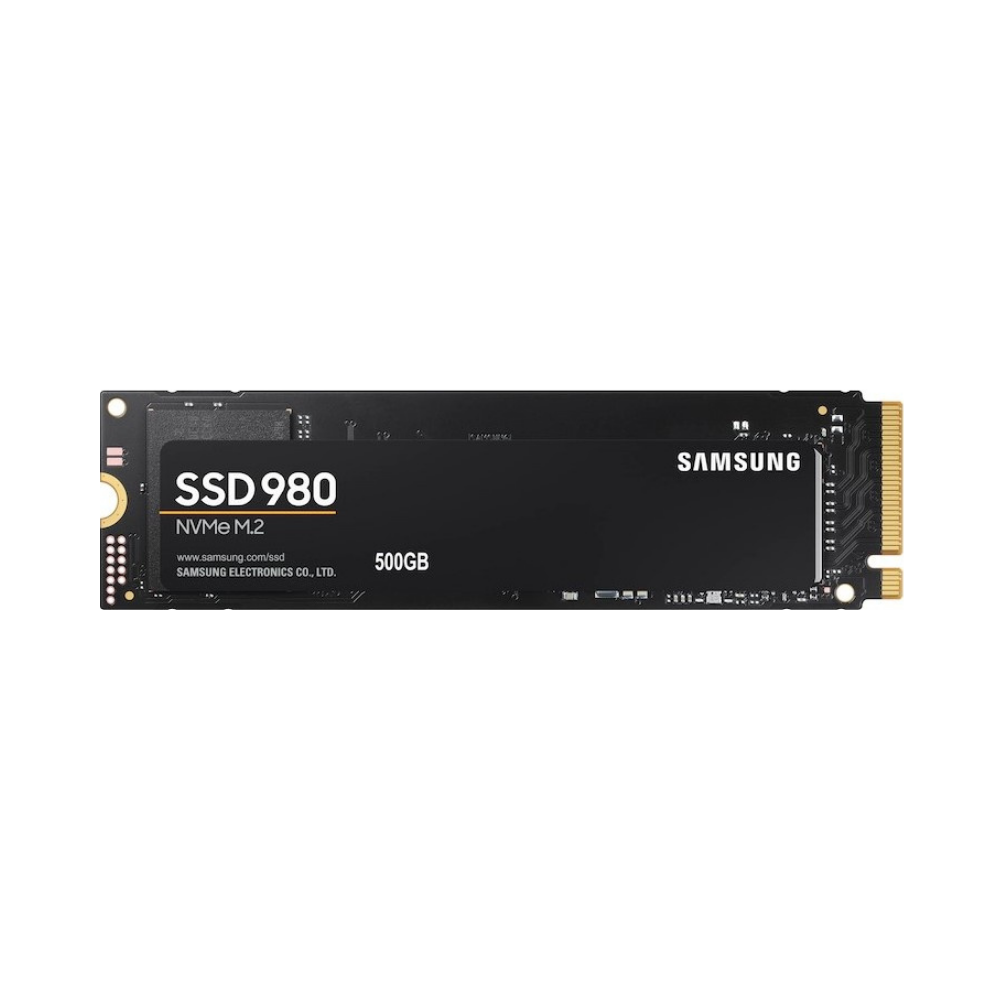

The Samsung 980 NVMe M.2 Internal SSD (500GB) is a high-performance storage solution designed for users seeking fast and reliable data access. Utilizing a PCIe Gen 3.0 x4 interface and NVMe 1.4 protocol, it delivers sequential read speeds of up to 3,100 MB/s and write speeds up to 2,600 MB/s. The drive features a compact M.2 2280 form factor, making it compatible with a wide range of laptops and desktops. Its DRAM-less design, combined with Host Memory Buffer (HMB) technology, ensures efficient performance without the need for dedicated DRAM.
Capacity | 500GB |
Interface | PCIe Gen 3.0 x4, NVMe 1.4 |
Form Factor | M.2 2280 |
Controller | Samsung Elpis |
NAND Flash | Samsung V-NAND 3-bit MLC |
Sequential Read | Up to 3,100 MB/s |
Sequential Write | Up to 2,600 MB/s |
Random Read IOPS | Up to 400,000 IOPS |
Random Write IOPS | Up to 470,000 IOPS |
Endurance | Up to 600 TBW |
MTBF | 1.5 million hours |
Operating Temperature | 0°C ~ +70°C |
Dimensions (LxWxH) | 80.0 x 22.0 x 2.38 mm |
Weight | Approximately 8 grams |
Warranty Terms: | 3-Years Warranty Provided by Samsung Mauritius |
Storage Capacity | 500GB |
---|---|
Form Factor | NVMe M.2 Drive |
Brand |
