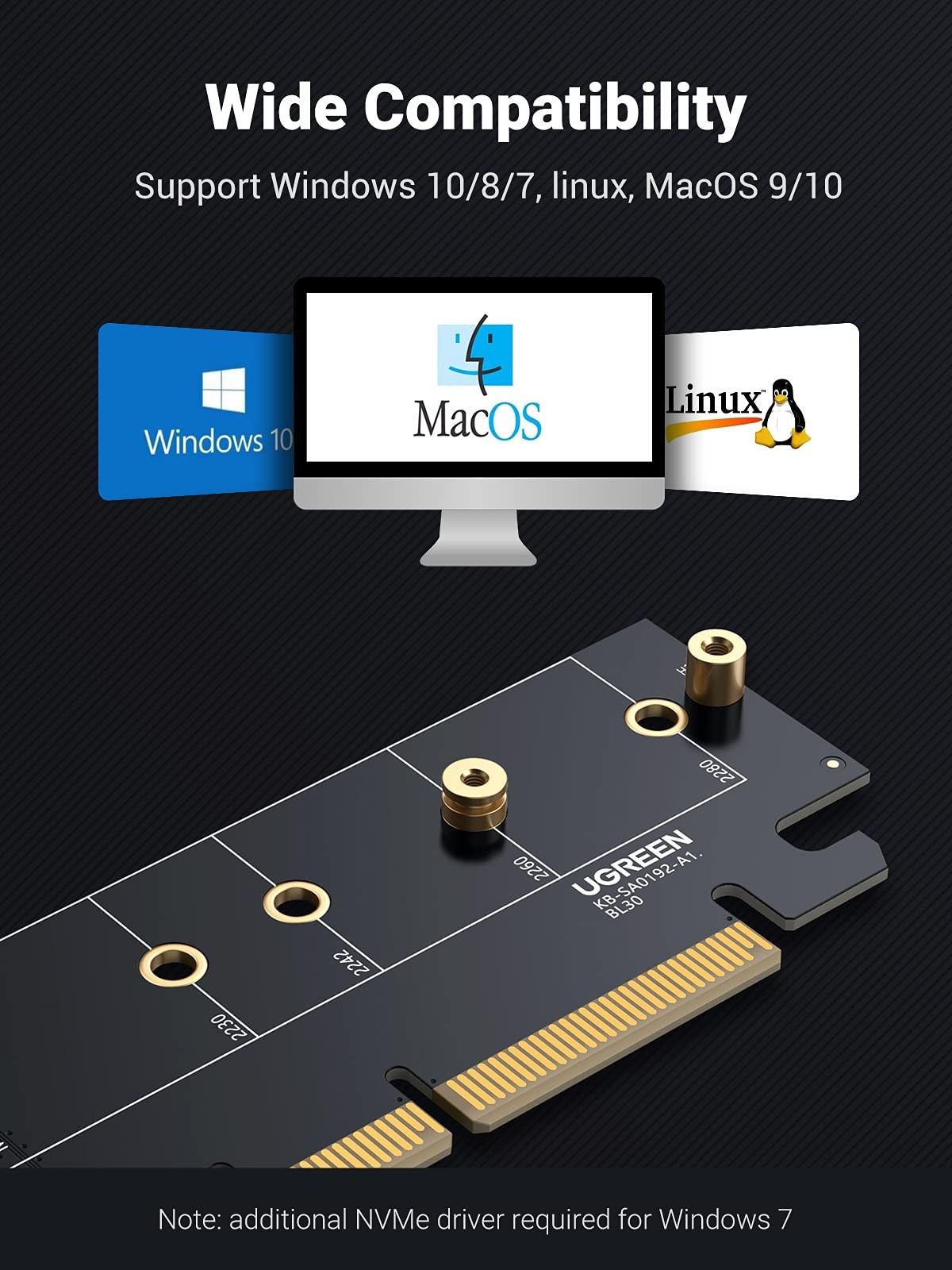

The UGREEN 30715 PCIe 4.0 (16×) to M.2 NVMe Expansion Card is a high‑performance adapter that lets you install an M.2 NVMe SSD into a PCIe slot, unlocking SSD flexibility for desktops with limited M.2 slots. Even though it uses a physical PCIe ×16 interface, the card functions at ×4 bandwidth (Gen4) to deliver speeds up to 64 Gbps, with backward compatibility to Gen3/2/1. It supports M‑Key and M+B‑Key NVMe SSDs in sizes up to 2280, and comes equipped with a heatsink, thermal pads, and protective features (overcurrent, overvoltage, EMI) to keep performance stable under load. No drivers are needed — it’s plug & play across Windows, Linux, and macOS.
| Model / SKU | 30715 / CM465 |
| Interface (Host Side) | PCIe 4.0 ×16 physical (operates at ×4 bandwidth) |

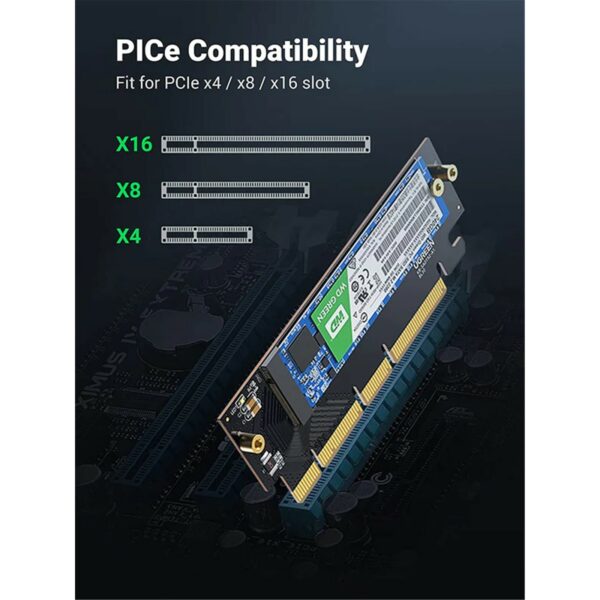

| Supported PCIe Slots | PCIe ×16, ×8, ×4 (downward compatible) |
| SSD Slot / Interface | M.2 (M‑Key / M+B‑Key) NVMe / AHCI (only PCIe mode) |
| Supported SSD Lengths | 2230, 2242, 2260, 2280 |

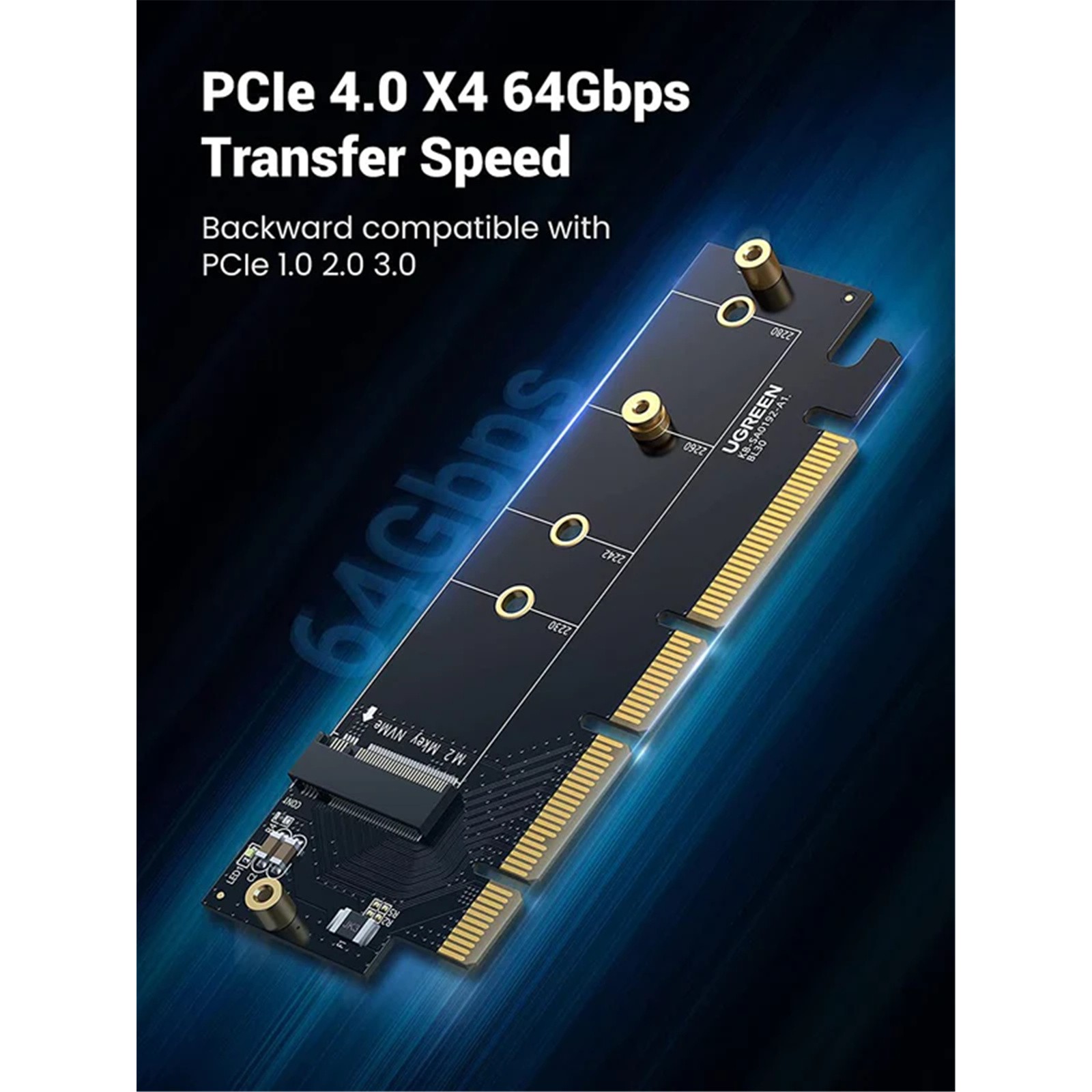

| Maximum Data Transfer | 64 Gbps (PCIe Gen4 ×4) / 32 Gbps (Gen3 ×4) |

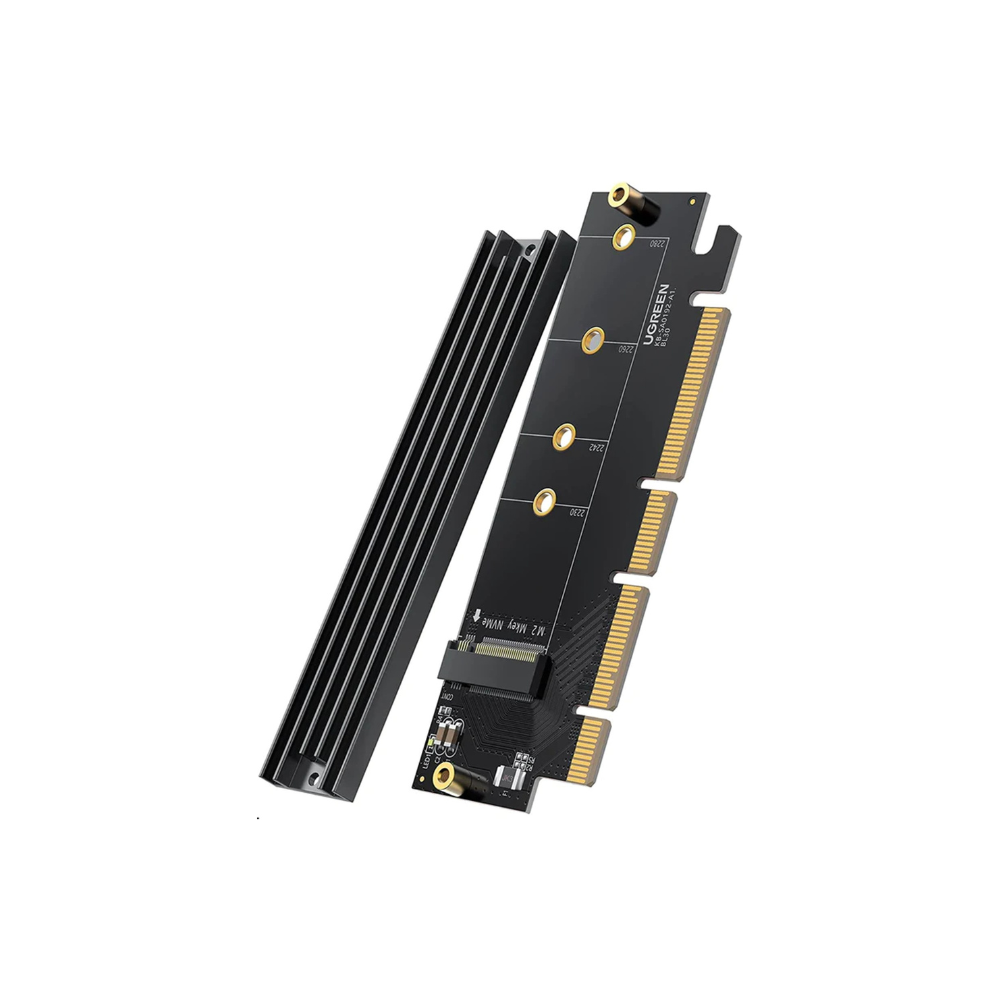

| Cooling & Thermal Management | Aluminum heatsink + 2 silicon thermal pads (included) for enhanced heat dissipation |
| Protection Features | Over-current, over-voltage, short-circuit, EMI protection |
| Warranty Terms: | 1-year warranty provided by UGREEN MAURITIUS – 101 Multimedia. |
