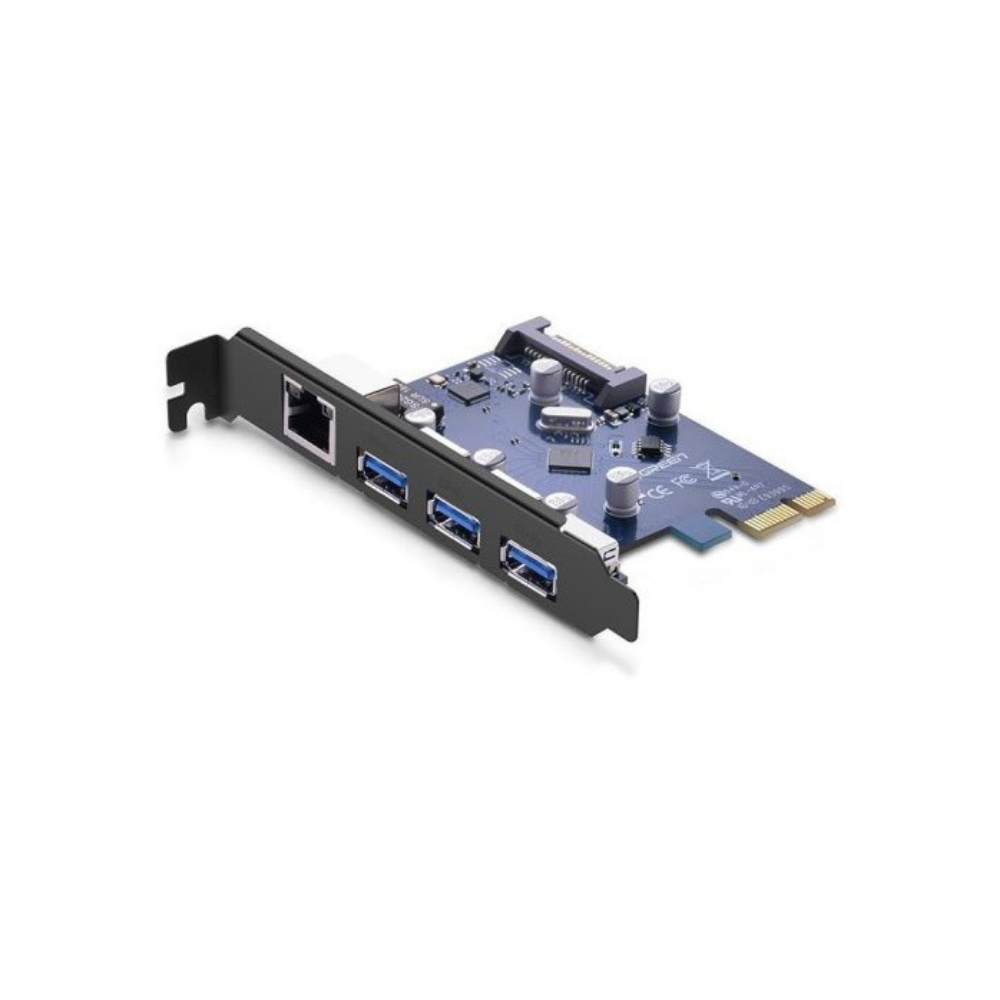

The Ugreen 30775 (US230) is a hybrid PCI Express expansion card combining **3 USB 3.0 ports** with a **Gigabit Ethernet (RJ45) port** on a single PCB. It’s ideal for desktops that need both extra high-speed USB ports and wired network connectivity, especially in scenarios such as desktop PCs without built-in network ports or with limited USB 3.0 capacity.
This card supports USB 3.0 transfer rates up to 5 Gbps (backward compatible with USB 2.0 / 1.1), powered via the motherboard plus optional SATA power for stability under heavy USB load. The Gigabit LAN port supports 10 / 100 / 1000 Mbps speeds with support for jumbo frames and VLAN tagging.

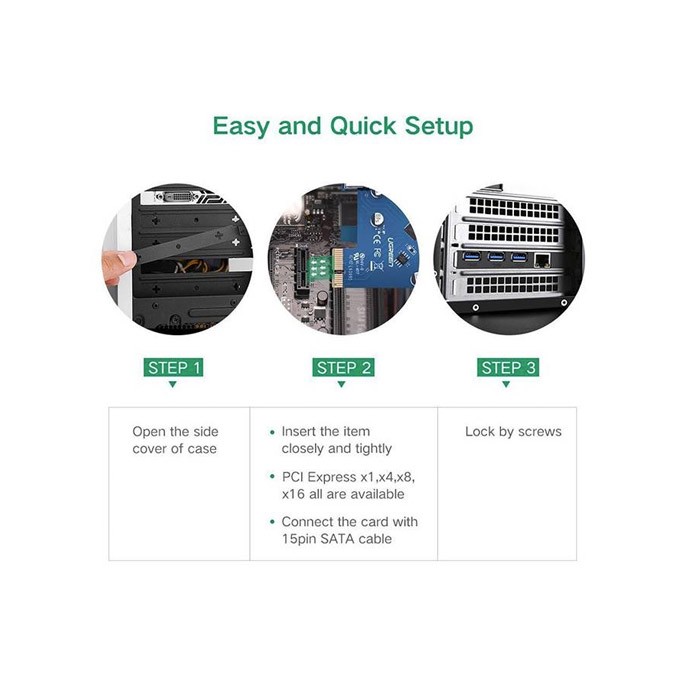

With both USB and network upgrades in one card, installation is easy: insert into a PCIe x1 (or larger) slot, optionally connect SATA power, install drivers if needed, and enjoy expanded I/O without cluttering your motherboard with multiple add-on cards.
Model / Part No. | Ugreen 30775 (US230) |
PCIe Interface | PCI Express x1 (compatible with x1 / x4 / x8 / x16 slots) |

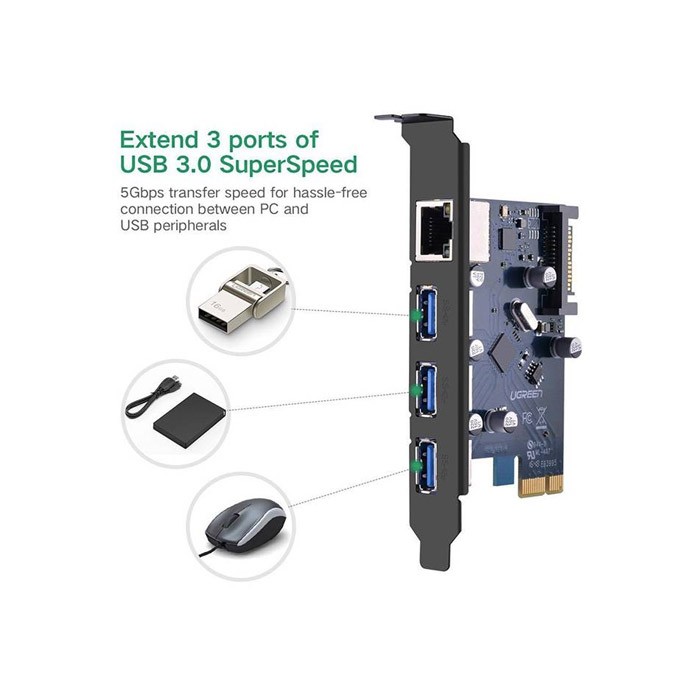

USB Ports | 3 × USB 3.0 Type-A ports (5 Gbps) |
Network Port | 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
Chipset | VL805 (for USB) + RTL8153 (for Ethernet) |
Data Transfer Rate (USB) | Up to 5 Gbps (USB 3.0) |
Network Speed | 10 / 100 / 1000 Mbps (Full / Half Duplex, Auto-negotiation) |
Jumbo Frame Support | Up to 9000 bytes (9K) |
Power Supply / Auxiliary | SATA 15-pin power connector (optional) for stable operation under high USB load |
Bracket / Form Factor | 12 cm length, full‑height bracket (may include low‑profile option depending on region) |
Dimensions / Length | Approx. 12 cm PCB length, 80 cm cable from board to internal connectors |
Warranty Terms: | 1-year warranty provided by UGREEN MAURITIUS – 101 Multimedia. |
