ugreen 40280/40283 hdmi sender & receiver 120m

Ugreen – 40280/40283 HDMI Sender & Receiver 120M

₨5,675 VAT Inc.

Categories: Cables, Computing, Multimedia, Networking Brand: Ugreen

Description

The Ugreen 40280/40283 HDMI Extender Kit provides a powerful and elegant solution for transmitting HDMI video & audio signals up to 120 metres over a single Cat5e/6 network cable. Ideal for meeting rooms, digital signage, classrooms, or home-theatre setups where the display is far from the source, this kit offers plug-and-play convenience with professional-grade build quality.

Key features include:

Supports Full HD (1080p) resolution with reliable transmission over long distances.

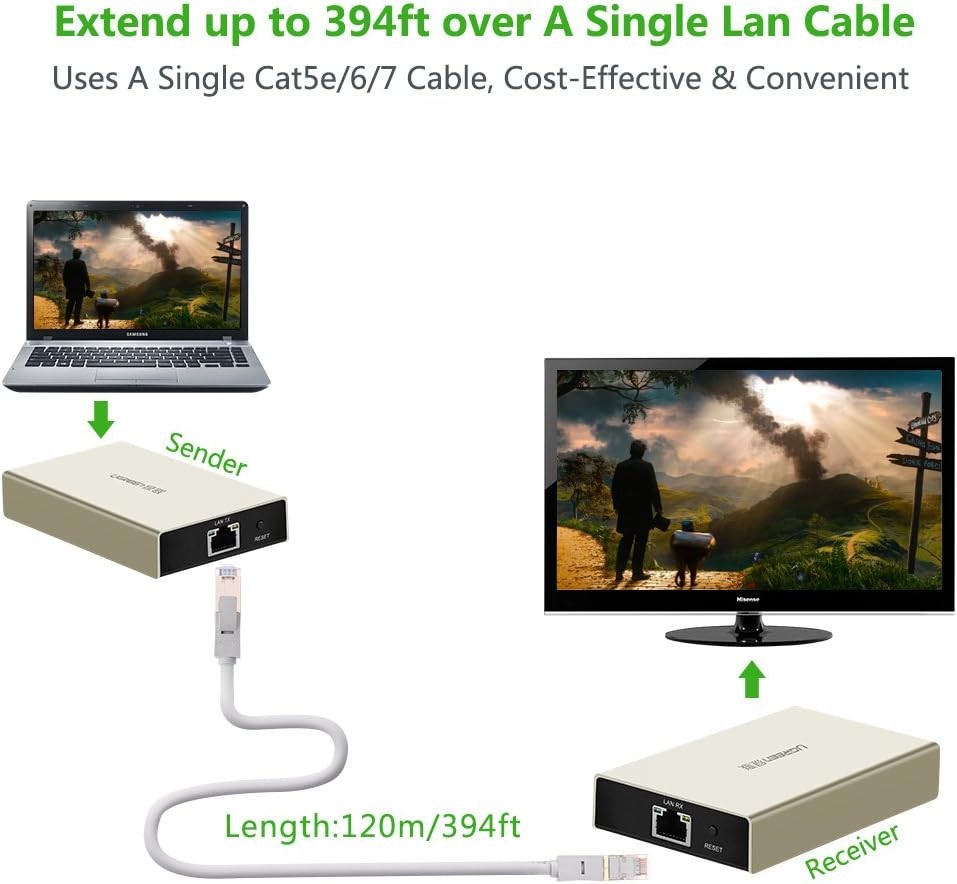

Extends HDMI signal up to ~120 m via Cat6 (also supports Cat5e) using RJ45 networking cable.

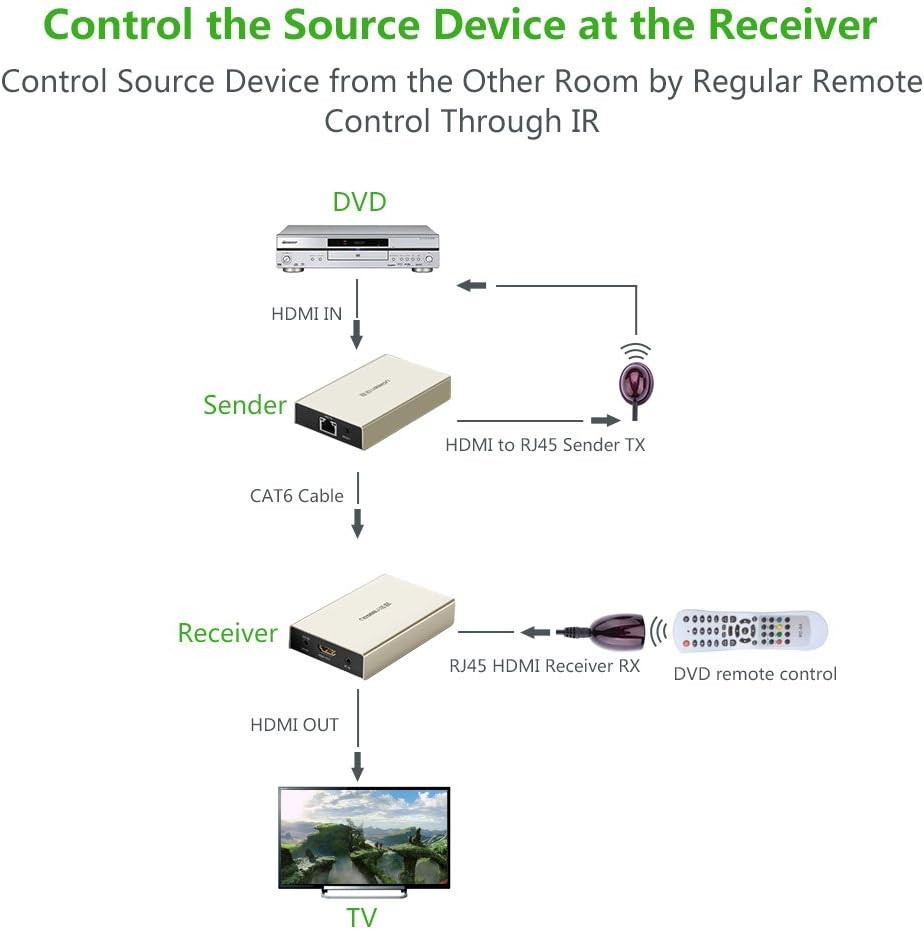

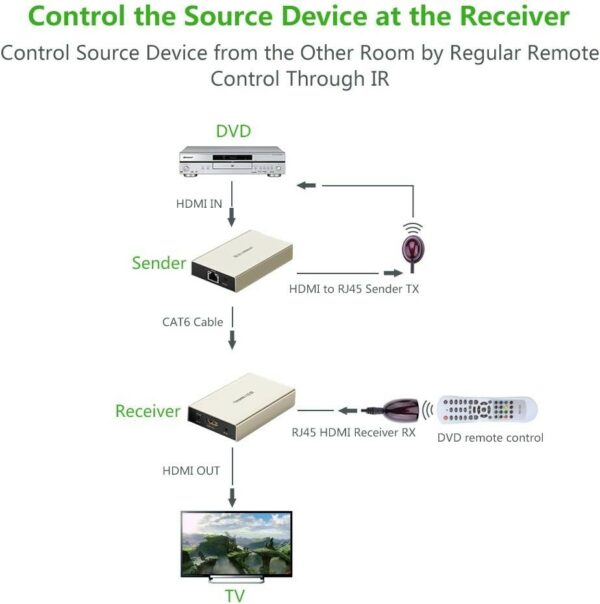

Includes IR pass-through so you can control the source device remotely from the display end (e.g., DVD, STB).

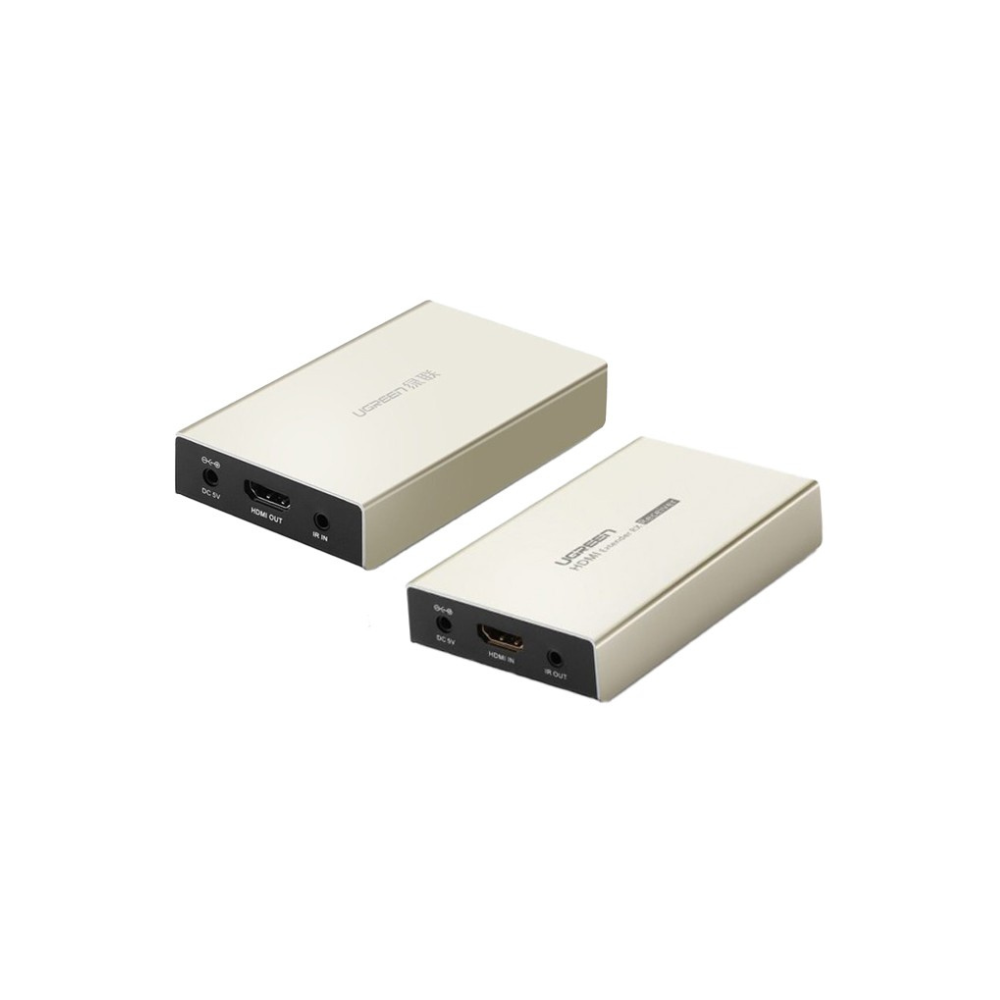

Compact, metal-alloy housing with gold-plated HDMI connectors for improved signal stability and interference resistance.
Easy installation: connect the Sender unit at the source, the Receiver at the display, run a Cat5e/6 cable between them, power both units, and go. No drivers needed, works like a standard HDMI link over long distance.

Whether you’re upgrading a boardroom, installing a projector in a large venue, or deploying signage across large spaces, the Ugreen 40280/40283 kit delivers a clean, cost-effective, and high-performance HDMI extension solution.

Tech Specs

Brand	Ugreen
Kit Models	40280 (Sender) & 40283 (Receiver)
Supported Transmission Length	Up to ~120 m via Cat6 (supports Cat5e)
Supported Resolution	Full HD 1080p @ 60Hz
HDCP Compatibility	HDCP 1.2 / 1.3
Network Cable Type	Cat5e or Cat6 RJ-45 cable
Chipset	TF680 series (both units)
Power Supply	5 V DC (typically 1 A) per unit
Housing / Material	Zinc-alloy metal with plastic surface panel; gold-plated HDMI connectors
Dimensions (each unit)	110 × 65 × 20 mm
