ugreen 50744 hdmi switch box 2 in 1 out kvm switching

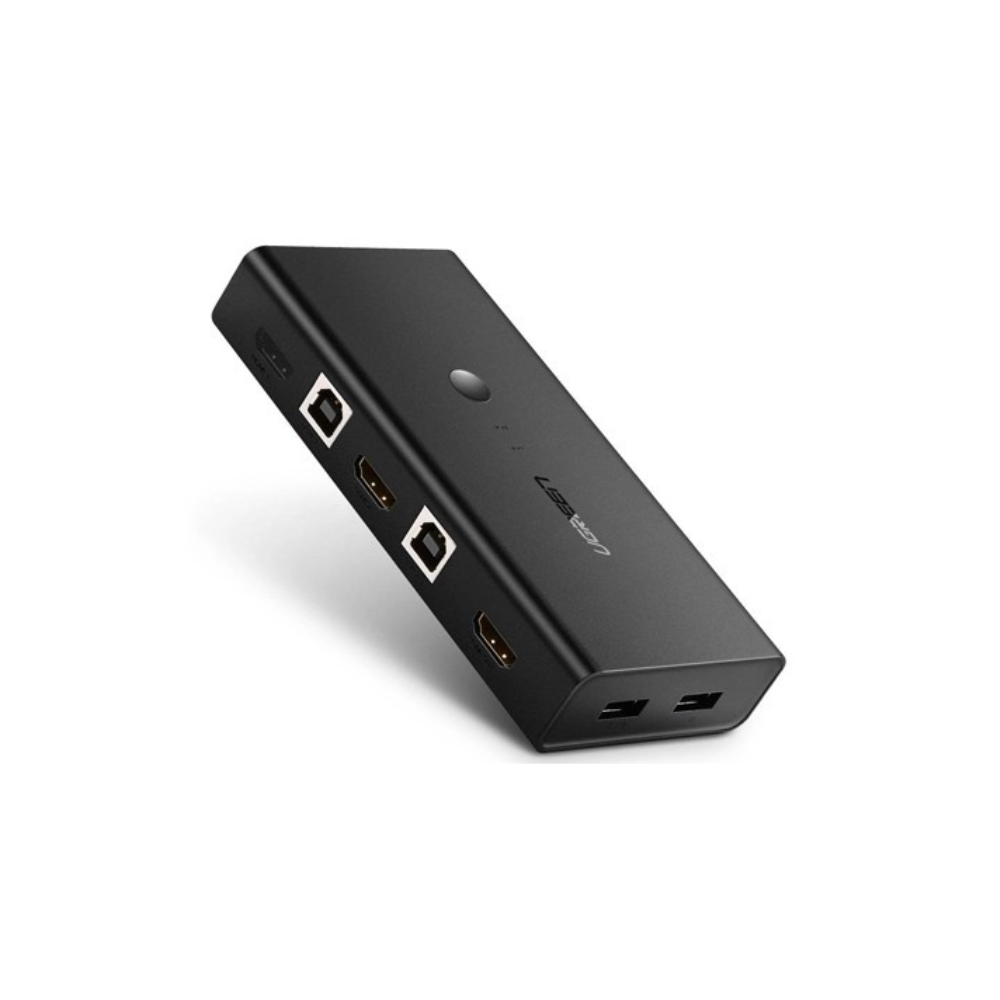

Ugreen – 50744 HDMI Switch Box 2 In 1 Out KVM Switching

₨2,075 VAT Inc.

Categories: Cables, Computing, Multimedia, Wires & Connectors Brand: Ugreen

Description

The UGREEN 50744 HDMI Switch Box (2 In → 1 Out) is a flexible KVM (Keyboard-Video-Mouse) switcher designed to let you control two HDMI-equipped host devices (such as two PCs or a PC and a console) using a single monitor, keyboard and mouse. With support for HDMI + USB sharing, you can connect your peripherals and display once — and switch between your inputs with ease.

This switch supports high-definition video output (including up to 4K resolution) and comes with a built-in USB hub that allows you to share keyboard, mouse and other USB 2.0/1.1 devices between the two hosts. Its plug-and-play setup requires no driver installation, and it features manual push-button switching, hot-key keyboard switching and automatic scan modes.

Whether you’re managing two computers in your office, or toggling between your gaming console and workstation, the UGREEN 50744 offers a clean, efficient way to cut down on clutter, cables and hassle — all while maintaining high-quality video and audio output.

Tech Specs

Model	50744 (UGREEN CM200)

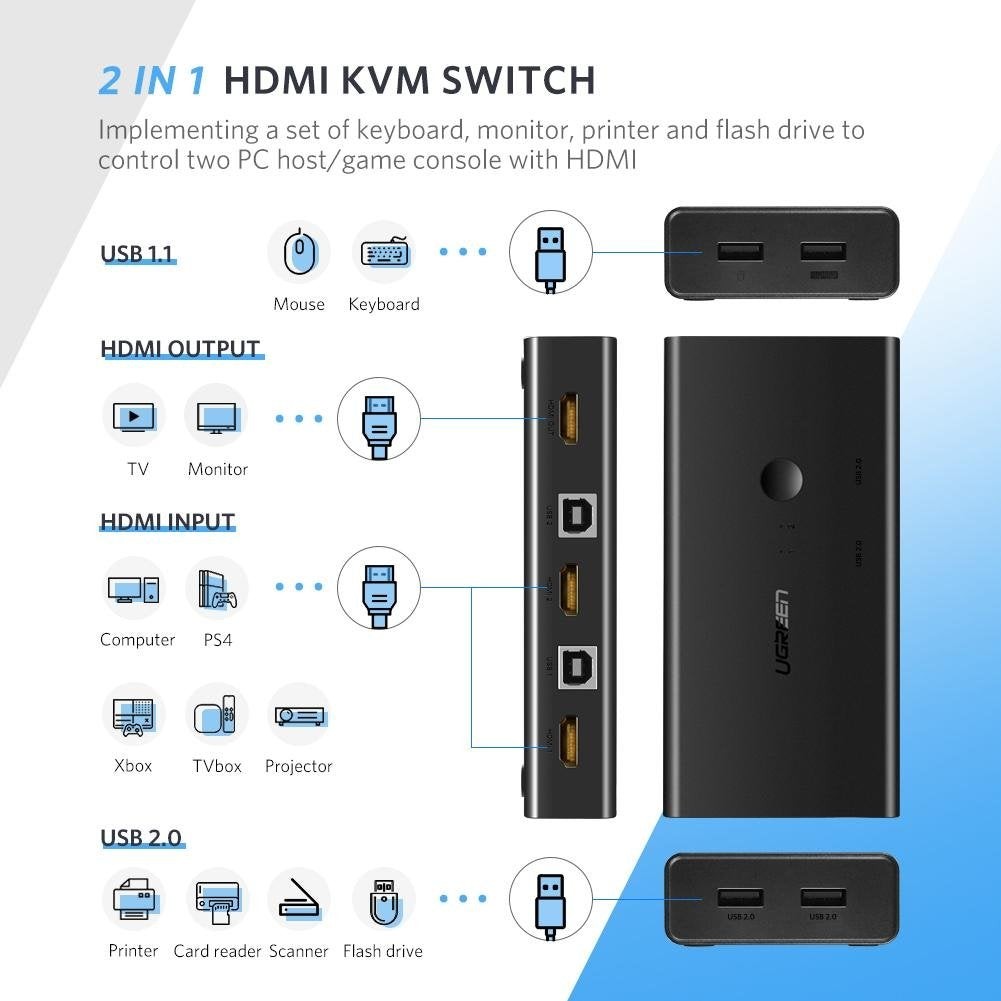

Inputs	2 × HDMI, 2 × USB2.0-B (for host computers)
Outputs	1 × HDMI (to monitor/display), 2 × USB2.0-A (fast devices), 2 × USB1.1-A (keyboard/mouse)
Maximum Supported Video Resolution	Up to 4K @ 30 Hz (some listings mention 4K@60 Hz in certain cable & device conditions)
Cable Length & Transmission Distance	Supports long-distance transmission (e.g., up to 28 m at 1080p with suitable HDMI cables)
Supported Features	HDMI 1.4 / HDCP 1.4 / CEC / DDC; supports shared USB peripherals; Button switch, keyboard hot-key switch, auto-scan mode
USB Hub Speed	USB2.0 hub, data transfer up to 480 Mbps (for two USB2.0-A ports)

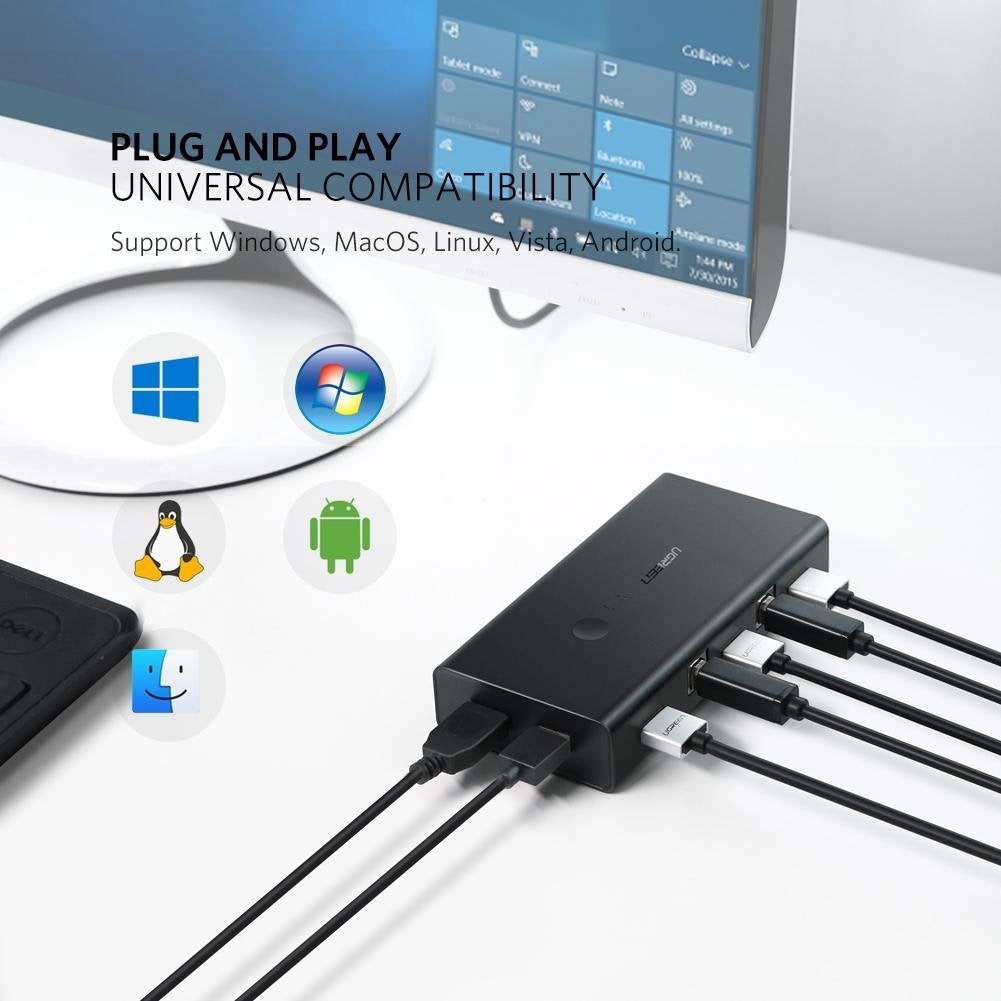

Compatibility (OS)	Windows 11/10/8/7, macOS, Linux (plug-and-play)

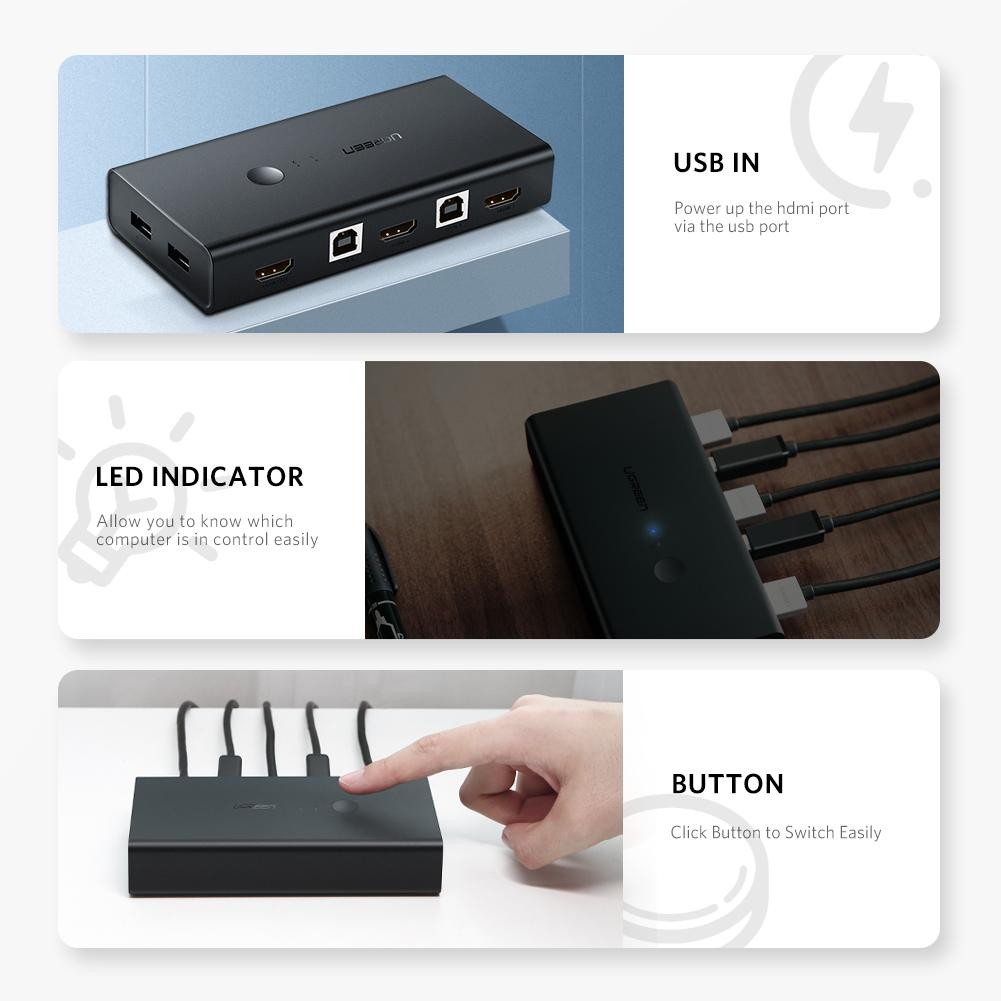

Housing / Build	Compact form factor, built-in push-button switch, LED status indicator
Colour & Dimensions	Typically black (some listings call it “Black/CM200”) – size approx L134 × W66 × H26 mm
