ugreen 70534 m.2 sata dual bay raid enclosure b key 6gbps

Ugreen M.2 SATA Dual-Bay RAID Enclosure (B-Key, 6Gbps, Model 70534)

₨2,100 VAT Inc.

Categories: Computing, Storage Brand: Ugreen

Description

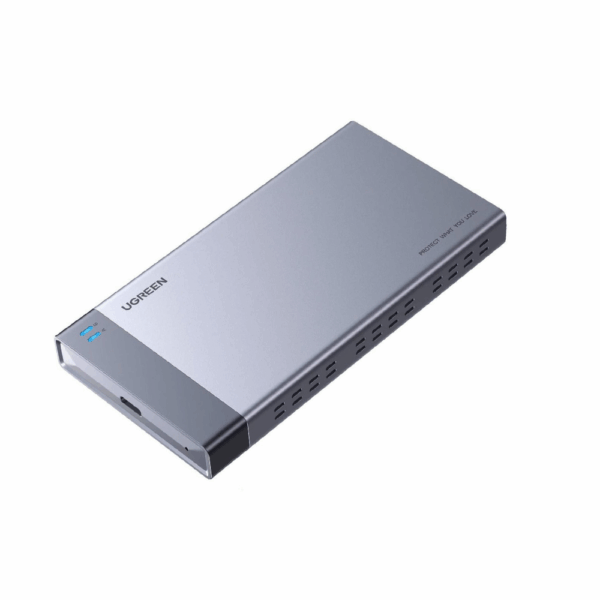

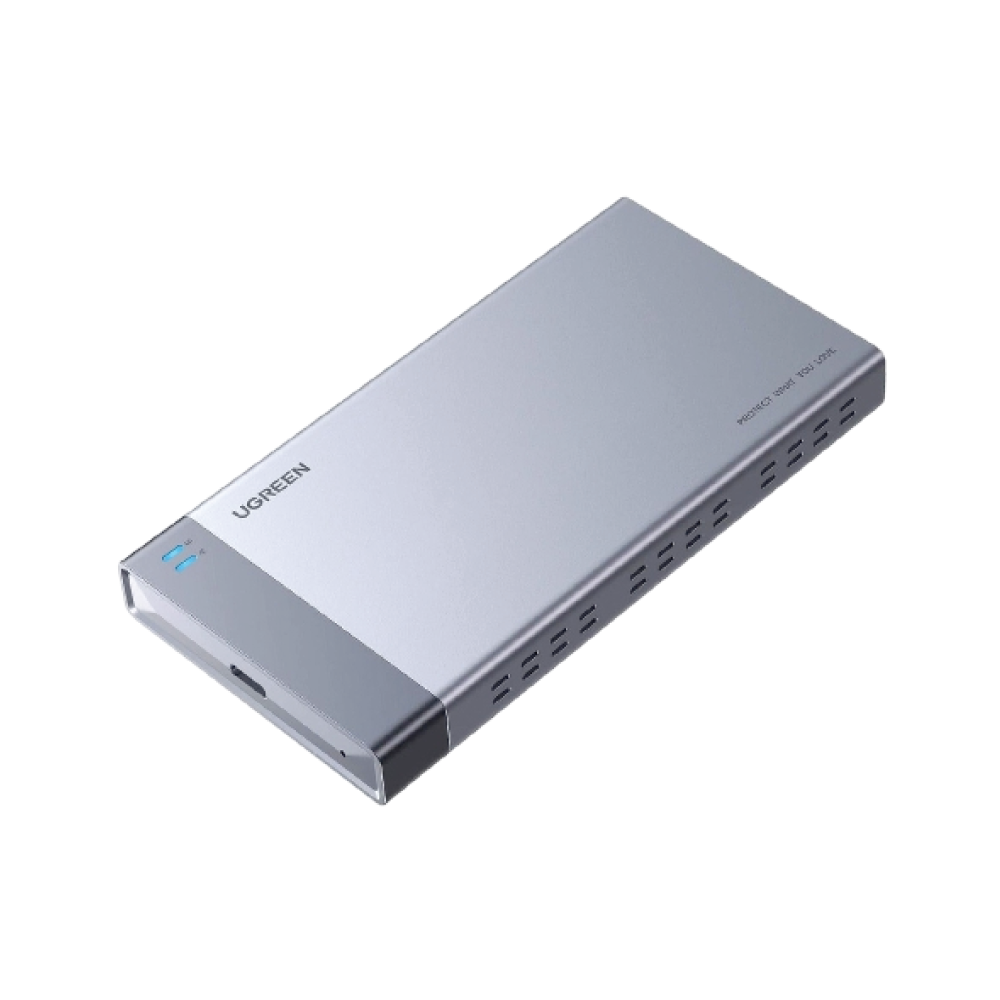

The Ugreen 70534 M.2 SATA Dual-Bay RAID Enclosure is a compact, tool-free aluminum case engineered for B-Key and M＋B-Key SATA NGFF SSDs. It supports dual SSDs in RAID 0, RAID 1, Span, or PM modes and connects via USB 3.1 Gen 2 (10 Gbps) for ultrafast data transfer. Built-in protections and LED indicators ensure reliability for tasks like backups, cloning, and storage expansion.

Tech Specs

Form Factor	Aluminum enclosure (dual M.2 slots)
Interface	USB 3.1 Gen 2 (10 Gbps)
Supported Drives	2× M.2 SATA SSDs (B-Key or M+B Key)
RAID Modes	RAID 0, RAID 1, Span, PM
Speed	Up to 10 Gbps (RAID 0), 6 Gbps (RAID 1, Span, PM)
Protection	Short-circuit, over-current, over-heat protections; LED status; S.M.A.R.T support
Extras	Hot-swappable, USB-A + USB-C cables included, tool-free design
