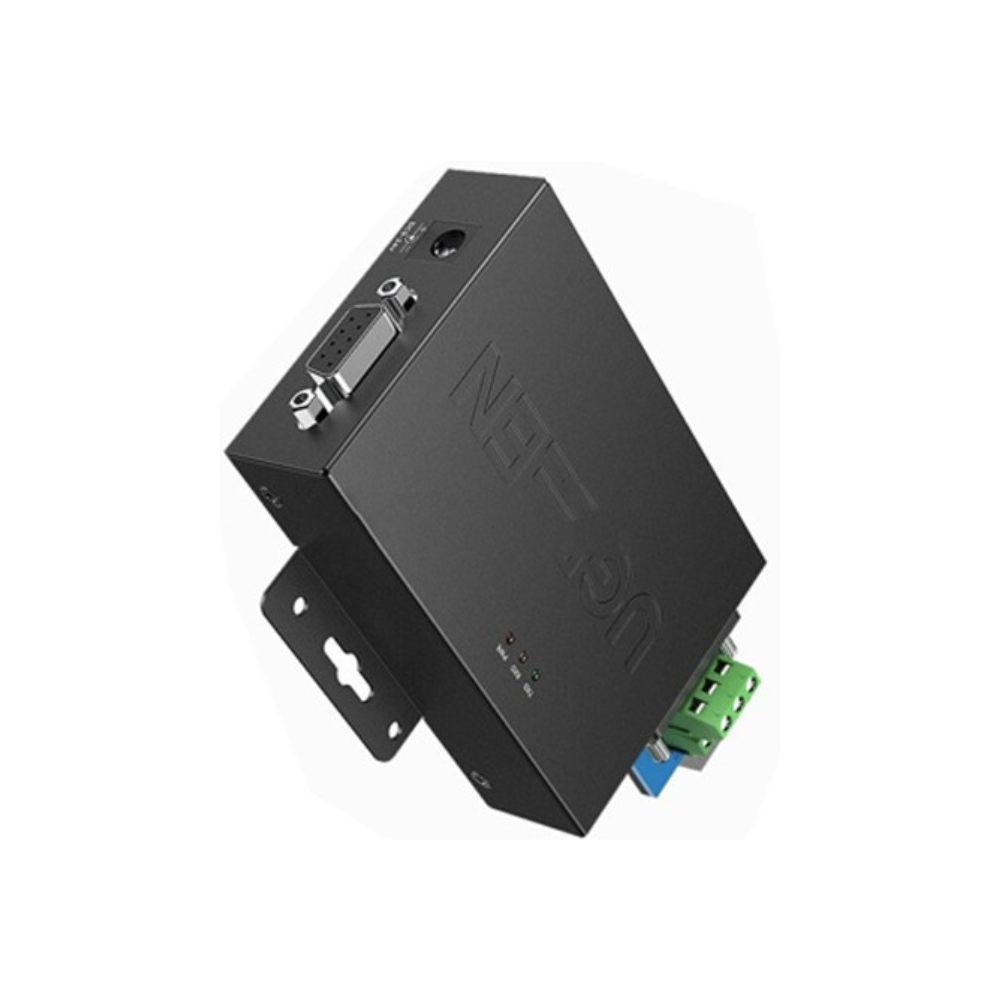

The UGREEN 80112 (also referenced as CM237/CM327 series) RS232 to RS485/RS422 converter is a rugged, industrial-grade communication bridge engineered for harsh or remote environments. It enables bidirectional conversion between RS232 (DB9) devices and RS485/RS422 multi-drop buses, supporting up to 32 devices on a network. The unit features automatic TX/RX direction control, supports full- and half-duplex modes, and integrates robust surge & lightning protection (±15 kV ESD, 600 W per line) to safeguard equipment in electrically noisy or lightning-prone installations. With support for long-distance transmission (up to kilometres) and broad voltage input (9–24 V DC), this converter is ideal for SCADA, industrial automation, remote telemetry, building management, and IoT networking applications.
| Model / SKU | UGREEN 80112 (CM237 / CM327) |
| Input Interface | RS-232 (DB9 female) |
| Output Interface | RS-485 & RS-422 dual-mode (terminal block or DB9) |
| Supported Standards | TIA/EIA RS-232, RS-485, RS-422 |
| Data Rate (Baud Rate) | 300 bps ~ 115.2 kbps |
| Transmission Distance | RS-485: up to 1.2 km (approx) depending on baud rate & cable — e.g., 300 m @115.2 kbps; 600 m @38.4 kbps; 1.2 km @9.6 kbps. |
| Operating Voltage | 9 V–24 V DC |
| Surge / Lightning Protection | ±15 kV ESD + 600 W surge protection per line |
| Operating Environment | Temperature: -25 °C to +70 °C; Humidity: 5%-95% RH. |
| Dimensions | Approx. 105.8 mm × 90 mm × 24 mm |
| Warranty Terms: | 1-year warranty provided by UGREEN MAURITIUS – 101 Multimedia. |
| Brand | |
|---|---|
| Product Categories | Adapters |
| Interface Type | DB9 |
