The Ugreen 80547 Thunderbolt 3 Port Type-C Multi-Port Docking Station expands your laptop’s connectivity with a comprehensive set of professional-grade ports. Designed for Thunderbolt 3 or USB-C devices, this hub features DisplayPort 1.4 video output supporting up to 8K @ 60 Hz, Gigabit Ethernet, multiple USB 3.1/3.0 ports, SD/TF card readers, a 3.5 mm audio jack, and power delivery through both PD and DC inputs. Perfect for content creators and multitaskers, it lets you connect displays, transfer data at up to 10 Gbps, and power your system all at once.
Encased in a durable aluminium alloy housing for efficient heat dissipation and a sleek finish, the Ugreen 80547 delivers stable performance whether you’re at your desk or on the go. With dual Thunderbolt 3 ports supporting daisy-chain connections and wide OS compatibility, it’s the ultimate hub for productivity and professional workflows.
| Model / SKU | Ugreen 80547 (CM355) |
| Input | 2 × Thunderbolt 3 (USB-C) Ports |
| Output Ports | • 1 × DisplayPort 1.4 (up to 8K @ 60 Hz) • 1 × RJ-45 Gigabit Ethernet Port (10/100/1000 Mbps) • 2 × USB-A 3.1 Gen 2 (10 Gbps) • 1 × USB-A 3.0 (5 Gbps) • 1 × USB-C 3.1 Gen 2 (10 Gbps) • 1 × 3.5 mm Audio Combo Jack • 1 × SD Card Slot • 1 × Micro SD (TF) Card Slot • 1 × DC Power Input (5.5 mm) |
| Video Output | DisplayPort 1.4 up to 8K @ 60 Hz, 5K @ 60 Hz, or 4K @ 120 Hz |
| Data Transfer Speed | Up to 40 Gbps (Thunderbolt 3), 10 Gbps (USB 3.1 Gen 2), 5 Gbps (USB 3.0) |
| Power Delivery | Supports PD charging up to 60 W via USB-C PD port / 120 W via DC input (24 V 5 A) |
| Audio | 3.5 mm combo audio jack (CTIA/OMTP headset compatible) |
| Card Reader | SD & Micro SD (dual read, SD 4.0 up to 3.12 Gbps) |
| Ethernet | Gigabit LAN (10/100/1000 Mbps) auto-negotiation |
| Material | Aluminium alloy housing with matte grey finish |

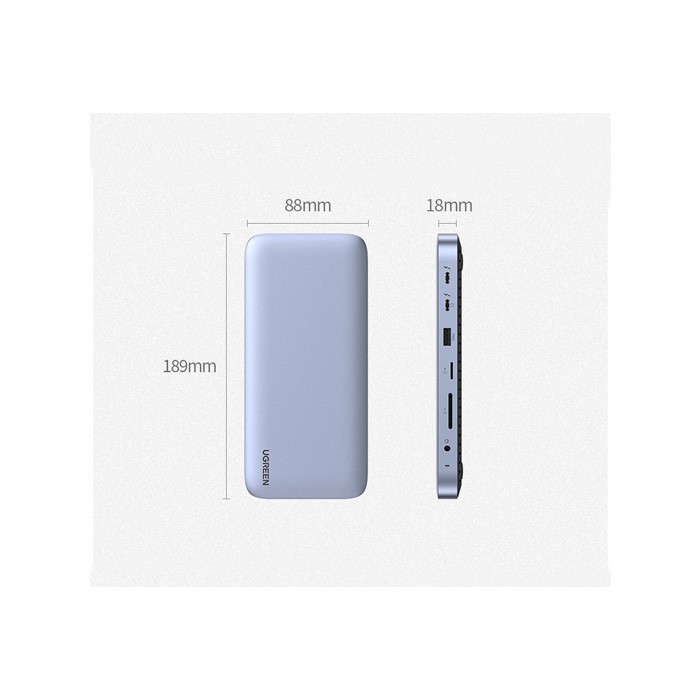

| Dimensions | Approx. 189 × 88 × 18 mm |
| Compatibility | Compatible with macOS, Windows, Linux, iPadOS; requires USB-C / Thunderbolt 3 port supporting DisplayPort Alt Mode and Power Delivery |
| Warranty Terms: | 1-year warranty provided by Ugreen Mauritius – 101 Multimedia. |
| Brand | |
|---|---|
| Product Categories | Docking Stations |
