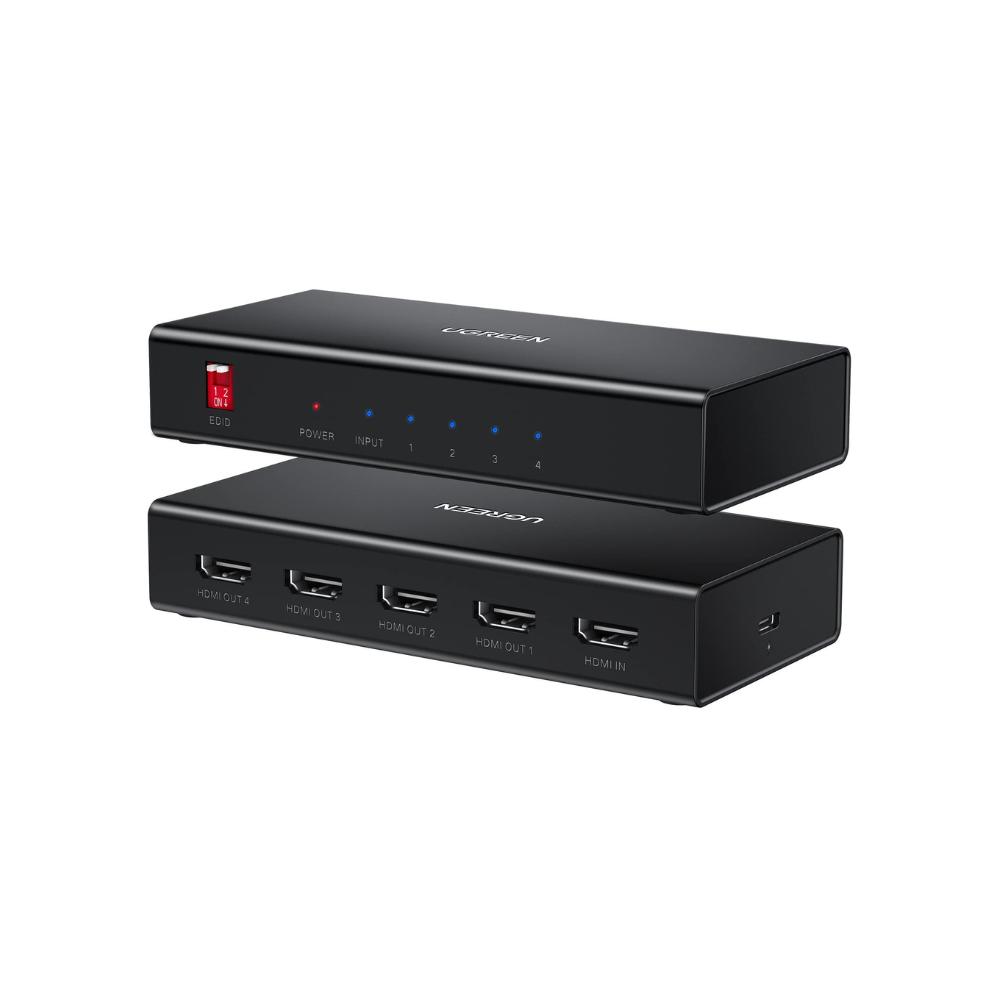

The **UGREEN 90514 (CM570)** HDMI Splitter is a powerful and efficient solution when you want to mirror a single HDMI source to **four separate displays** simultaneously. Engineered for high-quality video and audio duplication, this HDMI 2.0 splitter supports **4K @ 60 Hz**, HDR, 3D, and HDCP 2.2 — ensuring that every screen receives the same pristine signal without degradation.
Featuring an **EDID control switch**, the 90514 helps prevent black screens and flickering by allowing you to optimize the output resolution based on your displays’ capabilities. Its high-performance internal chip and 18 Gbps bandwidth ensure stable transmission, while the USB-C 5 V power input keeps the device powered reliably during use. Ideal for home theatre setups, conference rooms, gaming, or digital signage, this splitter brings flexibility and quality in one compact package.
—
| Model Number | 90514 (CM570) |
| Input Port | 1 × HDMI |
| Output Ports | 4 × HDMI |
| HDMI Version | HDMI 2.0 |
| Max Resolution | 4K @ 60 Hz; backwards-compatible with 4K @ 30Hz and 1080p @ 60Hz |
| HDCP / Other Support | HDCP 2.2 & 1.4, HDR, 3D |
| Audio Formats | DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSD, HBR Audio |
| Video Format | RGB 8 / 10 / 12 bpc, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Bandwidth | Up to 18 Gbps |
| EDID Control | Yes — helps avoid black-screen issues when displays differ |
| Cable Length / Signal Distance | • Up to ~40 m for 1080p using suitable HDMI cable • 3 m (30AWG) for input & 5 m (28AWG) for output at 4K @ 60Hz : • 15 m (26AWG) both input and output at 4K @ 30Hz • 20 m (24AWG) both input and output at 1080p @ 60Hz |
| Power Supply | USB-C, 5 V / 1 A |
| Device Material / Build | ABS + PET casing |
| Warranty Terms | 1-year warranty provided by UGREEN MAURITIUS – 101 Multimedia. |
| Brand | |
|---|---|
| Product Categories | Switchers |
| Interface Type | HDMI |
