The Blackmagic Design HyperDeck Studio HD Plus is a powerful recording and playback device designed for professional video production. Capable of recording up to 4K DCI at 30 fps, this compact, 1/2 rack-mountable unit is ideal for a wide range of applications, including live events, post-production, and more. With support for ProRes, DNxHD, and H.264 formats, the HyperDeck Studio HD Plus provides flexibility and high-quality video capture.

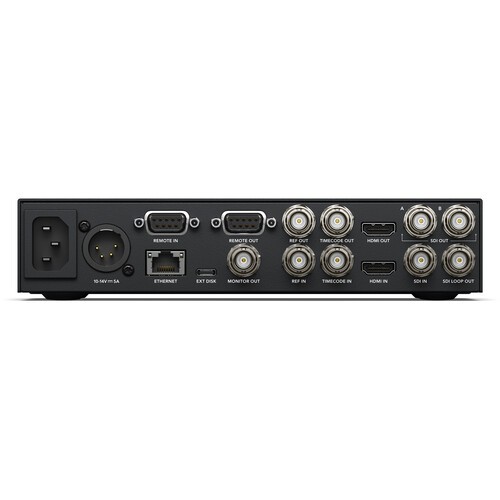

It offers a robust connectivity suite with 1 x 6G-SDI input, 1 x HDMI 2.0 input, and both 1 x HDMI 2.0 and 2 x 6G-SDI outputs. The device records in H.264 SDI 4:2:2 10-bit for professional video standards and supports timecode and reference input/output, ensuring synchronization with other equipment in your production setup.

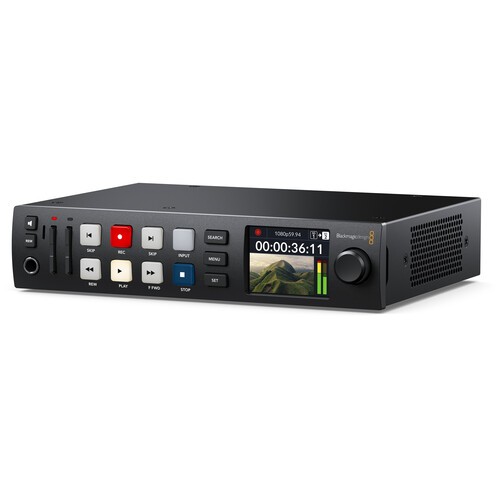

The front-panel buttons, jog wheel, and LCD display provide easy access to controls and settings, making it a user-friendly choice for broadcast professionals. Additional features include USB-C, 1G Ethernet, and RS-422 for remote control and seamless integration with your video system.
| Brand | Blackmagic Design |
| Product | HyperDeck Studio HD Plus |
| Recording Resolution | Up to 4K DCI at 30 fps |
| Playback Resolution | Up to 3840 x 2160 at 30 fps |
| Inputs | 1 x 6G-SDI Input, 1 x HDMI 2.0 Input |
| Outputs | 1 x HDMI 2.0 Output, 2 x 6G-SDI Outputs |
| Recording Formats | ProRes, DNxHD, H.264 |
| Recording Standard | H.264 SDI 4:2:2 10-Bit |
| Control | Front-Panel Buttons, Jog Wheel, LCD |
| Timecode & Reference | Input/Output Support |
| Form Factor | 1/2 Rack-Mountable |
| Connectivity | USB-C, 1G Ethernet, RS-422 |
| Warranty Terms | 1 Year Warranty by 101 Multimedia |
Reliable recording and playback for professional video production workflows.
