Description
Description

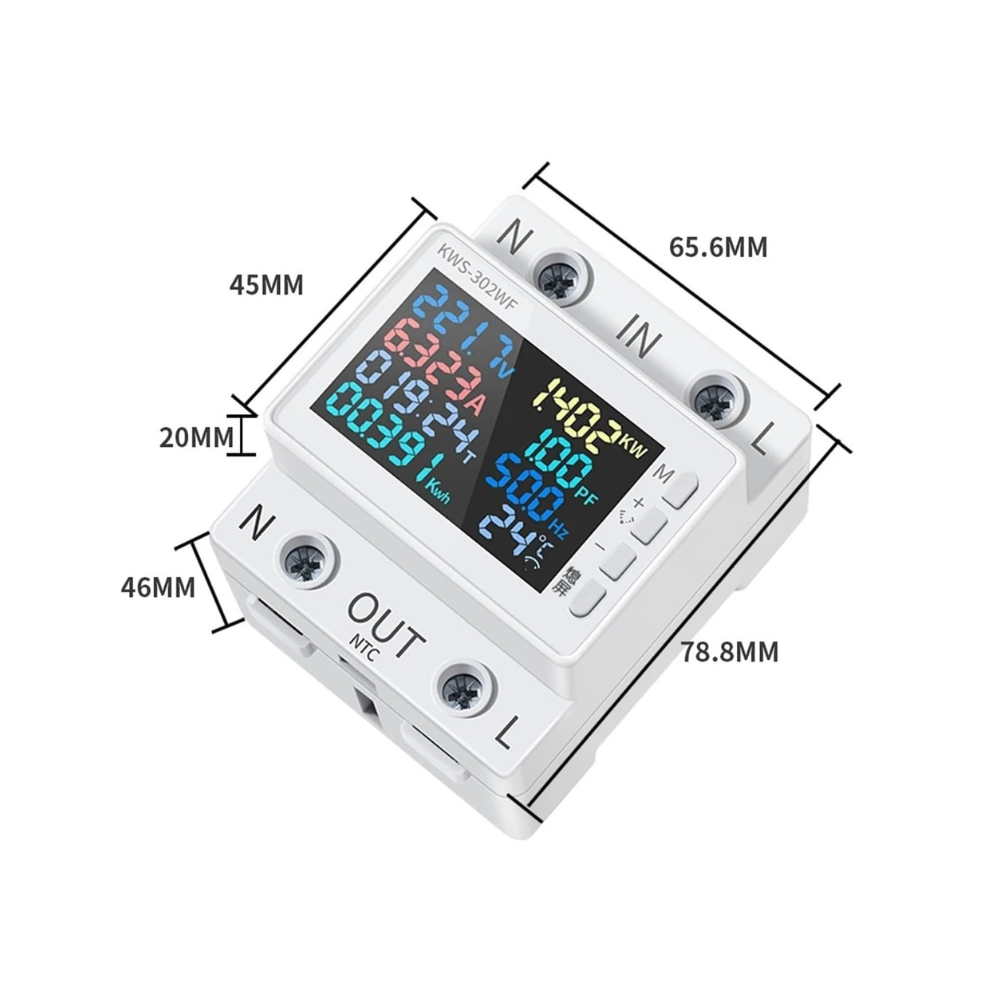

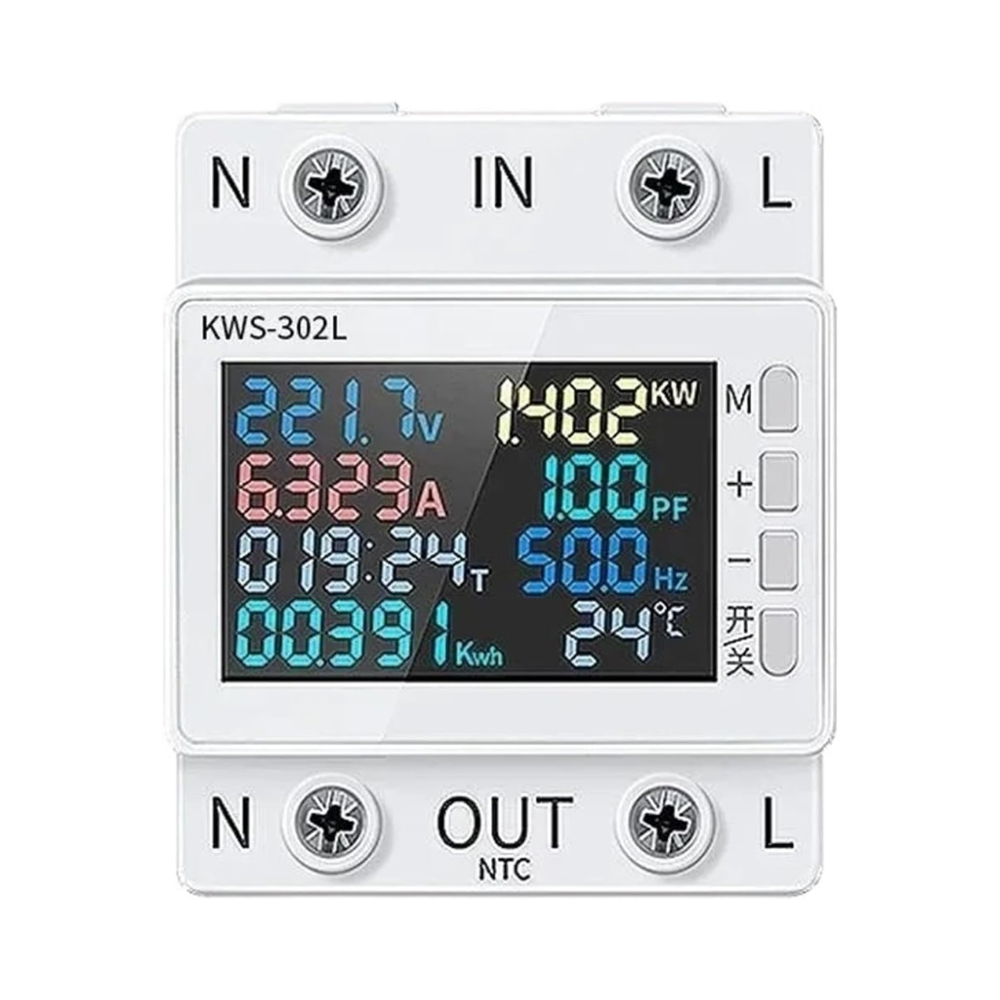

The GUIDE RAIL Energy Meter (KWS-302L) is a compact, DIN-rail mounted energy meter designed for single-phase electrical panels. It accurately measures voltage, current, active power, energy consumption, frequency, power factor, and operating time. Featuring a clear multi-color LCD display and onboard protection for over-voltage and under-voltage, the KWS‑302L ensures safe, reliable monitoring of electrical circuits. Its easy installation, robust ABS+PC housing, and intuitive interface make it ideal for residential, commercial, and light industrial applications.
Tech Specs
| Brand / Model | KWS‑302L |
| Material | Durable ABS + PC housing |
| Measurement | Voltage, Current, Power, Energy (kWh), Frequency, Power Factor, Timing, Temperature |
| Voltage Range | AC 170–270 V |
| Current Range | 0–63 A |
| Power Range | 0–17 kW |
| Mounting | Standard DIN (Guide) rail |
| Display | Multi-color LCD for clear parameter visualization |
| Protection Features | Over-voltage, under-voltage, blackout memory |
| Warranty Terms: | No Warranty – replacement available if product is found defective within 5 working days. |
★ ★ ★ ★ ★ 4.7 out of 5 “Compact, reliable, and easy to install. The display is clear and monitoring is accurate. Perfect for home and small office electrical panels.” — Verified user
